RB8532-25-0M9
RB8532-25-0M9

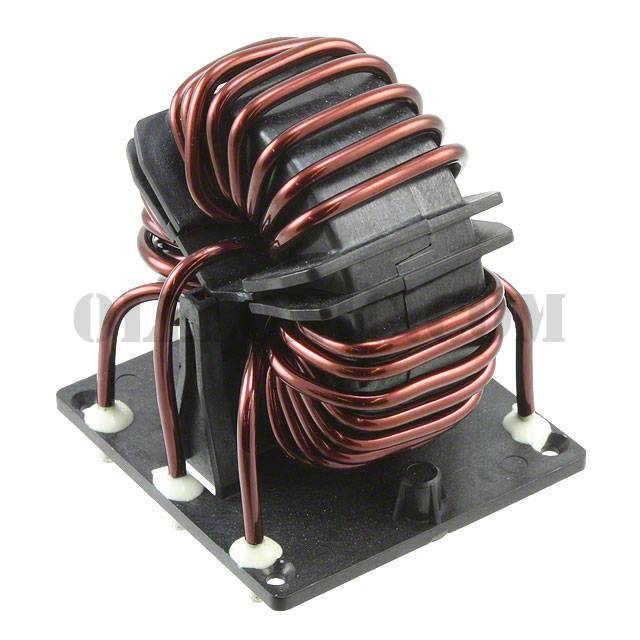

Part Number RB8532-25-0M9 Description CMC 940UH 25A 3LN TH Package / Case Vertical, 6 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 940µH @ 400Hz 3 Line Common Mode Choke Through Hole 25A DCR 3mOhm (Typ)
To learn about the specification of RB8532-25-0M9, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RB8532-25-0M9 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RB8532-25-0M9.
We are offering RB8532-25-0M9 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
RB8532-25-0M9 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet RB Series Datasheet Standard Package 32 Manufacturer Schaffner EMC Inc. Series RB Packaging Bulk Part Status Active Filter Type Power Line Number of Lines 3 Inductance @ Frequency 940µH @ 400Hz Current Rating (Max) 25A DC Resistance (DCR) (Max) 3mOhm (Typ) Voltage Rating - DC 1000V (1kV) Voltage Rating - AC 600V Operating Temperature -40°C ~ 125°C Ratings - Approvals - Features - Mounting Type Through Hole Size / Dimension 2.441" L x 2.283" W (62.00mm x 58.00mm) Height (Max) 2.756" (70.00mm) Package / Case Vertical, 6 PC Pin
