Home/Product Catalog/Inductors, Coils, Chokes / Wireless Charging Coils/  760308103206

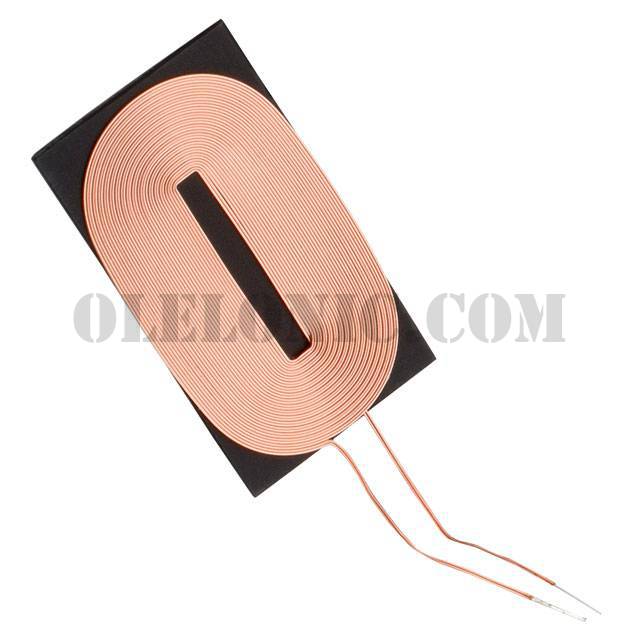

760308103206


760308103206

Part Number760308103206

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

760308103206 - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package144
ManufacturerWurth Electronics Inc.
SeriesWE-WPCC
Part StatusActive
FunctionReceiver
Type1 Coil, 1 Layer
Inductance7.5µH
Tolerance±10%
DC Resistance (DCR)340mOhm
Q @ Freq16 @ 125kHz
Current Rating (Amps)1.55A
Current - Saturation3A
Frequency - Self Resonant23MHz
Operating Temperature-20°C ~ 105°C
Size / Dimension1.10" L x 0.59" W x 0.03" H (28.0mm x 15.0mm x 0.7mm)
