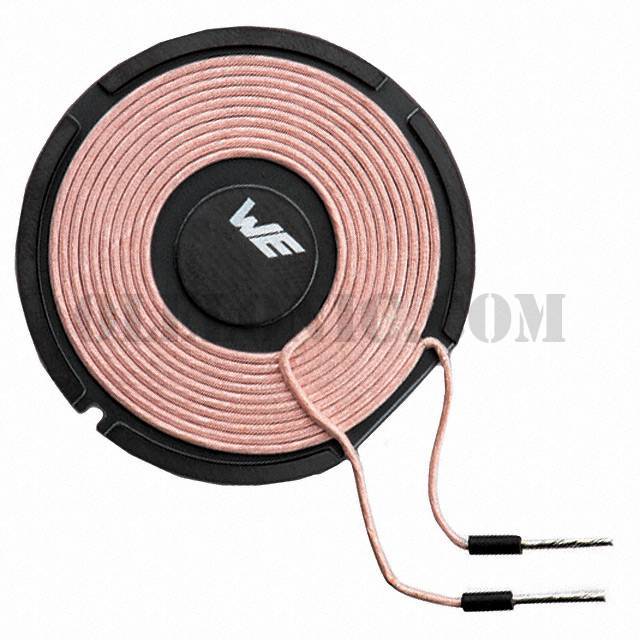

760308100111


760308100111

Part Number760308100111

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

760308100111 - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package20
ManufacturerWurth Electronics Inc.
SeriesWE-WPCC
Part StatusActive
FunctionTransmitter
Type1 Coil, 1 Layer
Inductance6.3µH
Tolerance±10%
DC Resistance (DCR)48mOhm Max
Q @ Freq120 @ 125kHz
Current Rating (Amps)6A
Current - Saturation10A
Frequency - Self Resonant24MHz
Operating Temperature-20°C ~ 105°C
Size / Dimension1.97" Dia x 0.19" H (50.0mm x 4.7mm)
