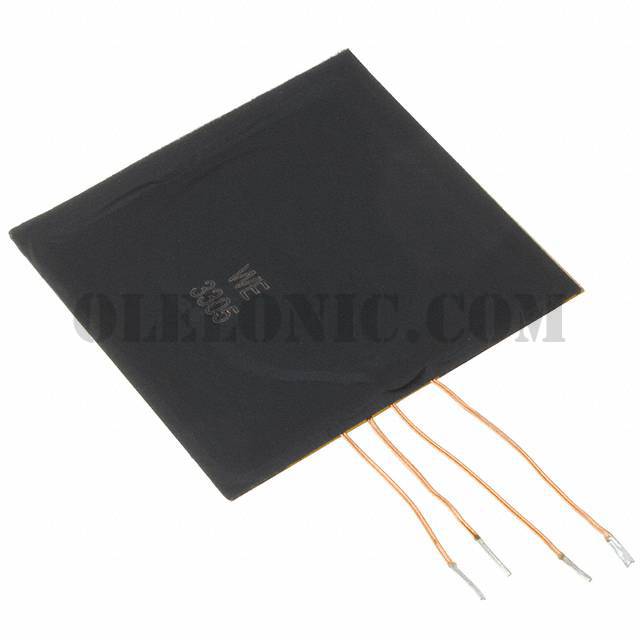

760308103305


760308103305

Part Number760308103305

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

760308103305 - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package72
ManufacturerWurth Electronics Inc.
SeriesWE-WPCC
Part StatusActive
FunctionReceiver
Type2 Coil, 1 Layer
Inductance8.8µH, 1.4µH
Tolerance±10%
DC Resistance (DCR)220mOhm Max, 100mOhm Max
Q @ Freq30 @ 125Khz, 47 @ 125kHz
Current Rating (Amps)2.6A, 5A
Current - Saturation5A, 5A
Frequency - Self Resonant22MHz, 16MHz
Operating Temperature-20°C ~ 105°C
Size / Dimension1.77" L x 1.73" W x 0.03" H (45.0mm x 44.0mm x 0.75mm)
