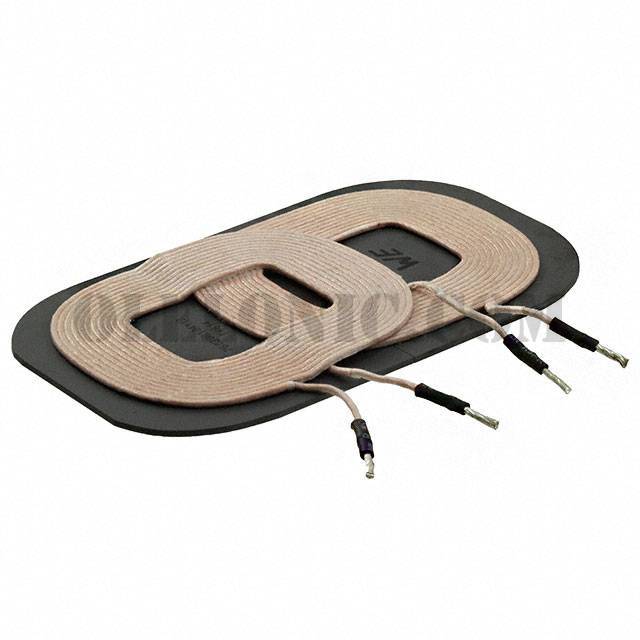

760308104119


760308104119

Part Number760308104119

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

760308104119 - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package12
ManufacturerWurth Electronics Inc.
SeriesWE-WPCC
Part StatusActive
FunctionTransmitter
Type2 Coil, 1 Layer
Inductance12µH, 11.5µH
Tolerance±10%
DC Resistance (DCR)56mOhm
Q @ Freq130 @ 125kHz
Current Rating (Amps)8A
Current - Saturation12A
Frequency - Self Resonant12MHz
Operating Temperature-20°C ~ 105°C
Size / Dimension3.48" L x 2.07" W x 0.14" H (88.50mm x 52.50mm x 3.50mm)
