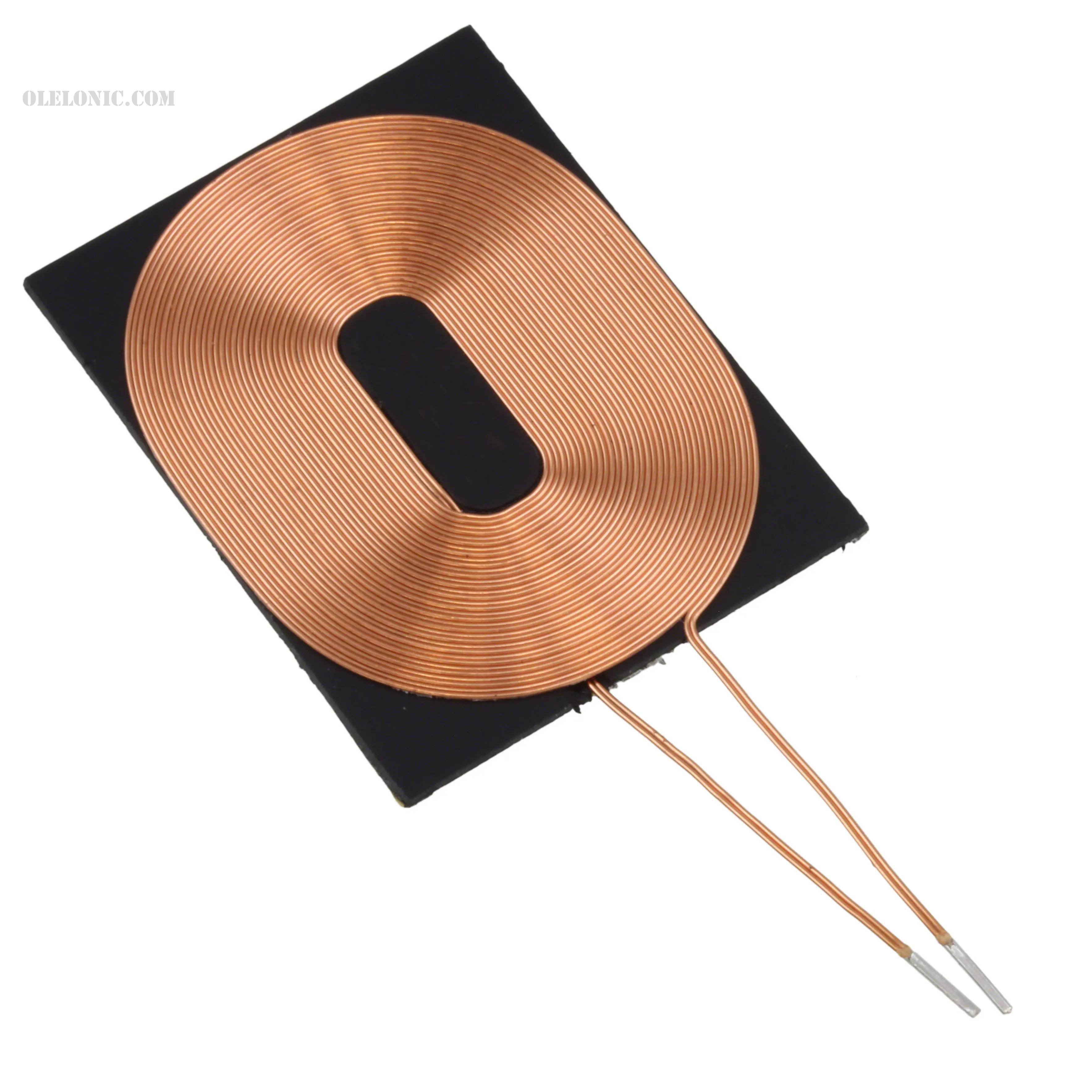

760308103205


760308103205

Part Number760308103205

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

760308103205 - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package96
ManufacturerWurth Electronics Inc.
SeriesWE-WPCC
Part StatusActive
FunctionReceiver
Type1 Coil, 1 Layer
Inductance11µH
Tolerance±10%
DC Resistance (DCR)180mOhm
Q @ Freq30 @ 125kHz
Current Rating (Amps)2.5A
Current - Saturation4A
Frequency - Self Resonant16MHz
Operating Temperature-20°C ~ 105°C
Size / Dimension1.34" L x 1.04" W x 0.04" H (34.0mm x 26.5mm x 0.9mm)
