Home/Product Catalog/Inductors, Coils, Chokes / Wireless Charging Coils/  760308101208

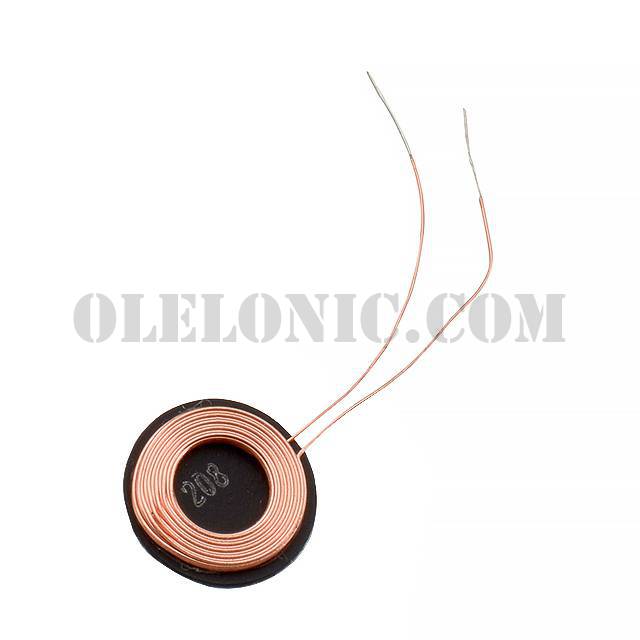

760308101208


760308101208

Part Number760308101208

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

760308101208 - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package216
ManufacturerWurth Electronics Inc.
SeriesWE-WPCC
Part StatusActive
FunctionReceiver
Type1 Coil, 1 Layer
Inductance13µH
Tolerance±10%
DC Resistance (DCR)400mOhm
Q @ Freq17 @ 125kHz
Current Rating (Amps)0.8A
Current - Saturation2A
Frequency - Self Resonant26MHz
Operating Temperature-20°C ~ 105°C
Size / Dimension0.39" Dia x 0.07" H (10.0mm x 1.7mm)

760308101208 - Related Products

More >>
760308101220 Wurth Electronics Inc., 1 Coil, 1 Layer 12.6µH Wireless Charging Coil Receiver 340mOhm Max, WE-WPCC View
760308103215 Wurth Electronics Inc., 1 Coil, 1 Layer 14.3µH Wireless Charging Coil Receiver 190mOhm Max, WE-WPCC View
760308101219 Wurth Electronics Inc., 1 Coil, 1 Layer 11.8µH Wireless Charging Coil Receiver 750mOhm Max, WE-WPCC View
760308101217 Wurth Electronics Inc., 1 Coil, 1 Layer 24.2µH Wireless Charging Coil Receiver 1.4Ohm Max, WE-WPCC View
760308103147 Wurth Electronics Inc., 3 Coil, 1 Layer 8.5µH, 7.5µH, 8.5µH Wireless Charging Coil Receiver, Transmitter 56mOhm Max, WE-WPCC View
760308100110 Wurth Electronics Inc., 1 Coil, 1 Layer 24µH Wireless Charging Coil Transmitter 70mOhm, WE-WPCC View
760308105 Wurth Electronics Inc., 1 Coil, 1 Layer 6.3µH Wireless Charging Coil Transmitter 24mOhm Max, WE-WPCC View
760308104113 Wurth Electronics Inc., 1 Coil, 1 Layer 12µH Wireless Charging Coil Transmitter 72mOhm Max, WE-WPCC View
760308101208 Wurth Electronics Inc., 1 Coil, 1 Layer 13µH Wireless Charging Coil Receiver 400mOhm, WE-WPCC View
760308101141 Wurth Electronics Inc., 1 Coil, 1 Layer 10µH Wireless Charging Coil Transmitter 30mOhm Max, WE-WPCC View
760308102306 Wurth Electronics Inc., 2 Coil, 1 Layer 8µH, 1.4µH Wireless Charging Coil Receiver 400mOhm Max, 100mOhm Max, WE-WPCC View
760308100141 Wurth Electronics Inc., 1 Coil, 1 Layer 10µH Wireless Charging Coil Transmitter 30mOhm Max, WE-WPCC View
