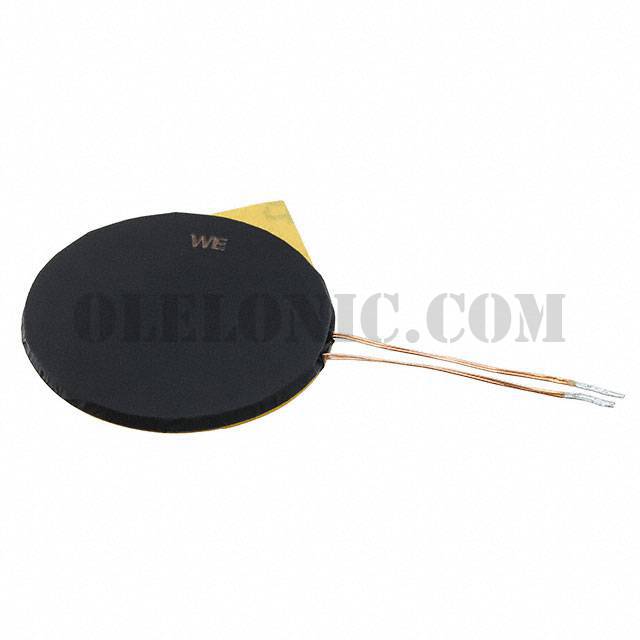

760308101303


760308101303

Part Number760308101303

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

760308101303 - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package384
ManufacturerWurth Electronics Inc.
SeriesWE-WPCC
Part StatusActive
FunctionReceiver
Type1 Coil, 1 Layer
Inductance47µH
Tolerance±10%
DC Resistance (DCR)460mOhm
Q @ Freq25 @ 125kHz
Current Rating (Amps)1.5A
Current - Saturation3A
Frequency - Self Resonant8MHz
Operating Temperature-20°C ~ 105°C
Size / Dimension1.02" L x 1.02" W x 0.05" H (26.0mm x 26.0mm x 1.3mm)
