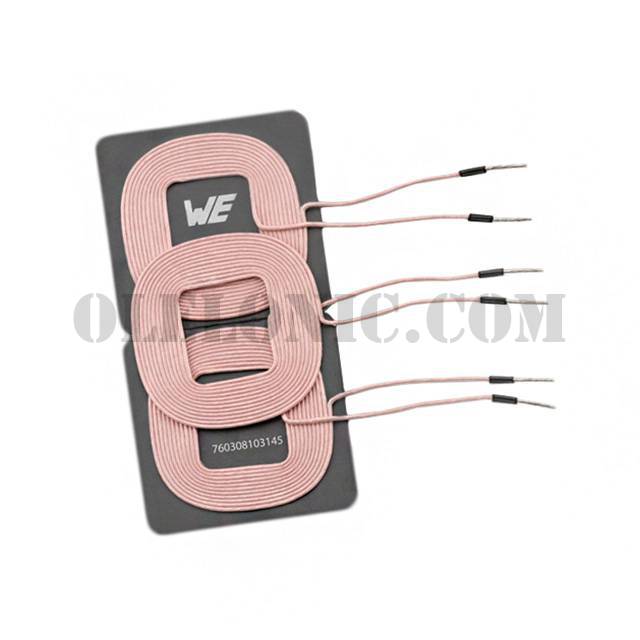

760308103145


760308103145

Part Number760308103145

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

760308103145 - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package4
ManufacturerWurth Electronics Inc.
SeriesWE-WPCC
Part StatusActive
FunctionReceiver, Transmitter
Type3 Coil, 1 Layer
Inductance11.3µH
Tolerance±10%
DC Resistance (DCR)83mOhm Max
Q @ Freq150 @ 125kHz, 145 @ 125kHz
Current Rating (Amps)8.5A
Current - Saturation24A
Frequency - Self Resonant10MHz
Operating Temperature-20°C ~ 105°C
Size / Dimension4.29" L x 2.20" W x 0.20" H (109.0mm x 56.0mm x 5.2mm)
