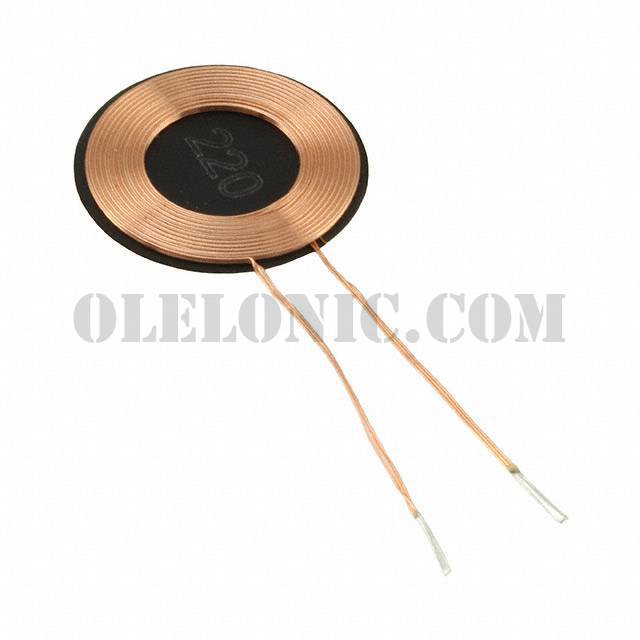

760308101220


760308101220

Part Number760308101220

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

760308101220 - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package384
ManufacturerWurth Electronics Inc.
SeriesWE-WPCC
Part StatusActive
FunctionReceiver
Type1 Coil, 1 Layer
Inductance12.6µH
Tolerance±10%
DC Resistance (DCR)340mOhm Max
Q @ Freq20 @ 125kHz
Current Rating (Amps)1.1A
Current - Saturation2.5A
Frequency - Self Resonant19MHz
Operating Temperature-20°C ~ 105°C
Size / Dimension0.67" Dia x 0.03" H (17.0mm x 0.8mm)
