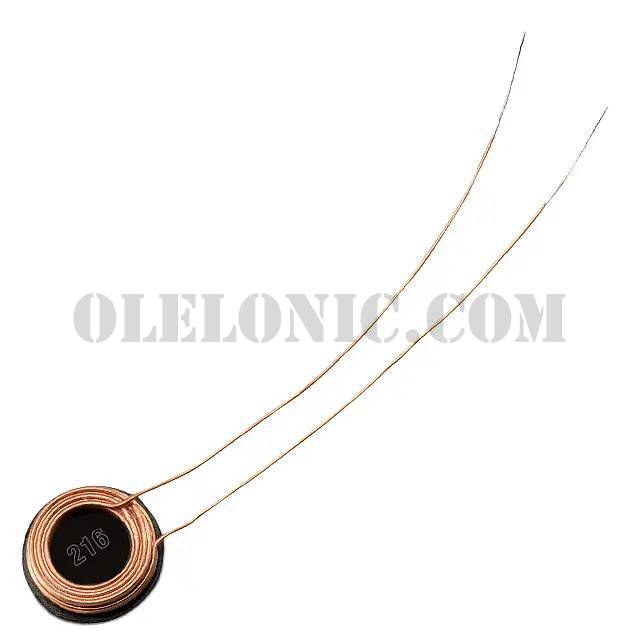

760308101216


760308101216

Part Number760308101216

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

760308101216 - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package60
ManufacturerWurth Electronics Inc.
SeriesWE-WPCC
Part StatusActive
FunctionReceiver
Type1 Coil, 1 Layer
Inductance7.2µH
Tolerance±10%
DC Resistance (DCR)440mOhm Max
Q @ Freq10 @ 125kHz
Current Rating (Amps)500mA
Current - Saturation1A
Frequency - Self Resonant32MHz
Operating Temperature-20°C ~ 105°C
Size / Dimension0.24" Dia x 0.08" H (6.0mm x 2.0mm)
