Categories	Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet	WT505090-10F2-A11-G1 Spec
Standard Package	60
Manufacturer	TDK Corporation
Series	WT
Part Status	Active
Function	Transmitter
Type	1 Coil, 1 Layer
Inductance	6.3µH
DC Resistance (DCR)	60mOhm
Size / Dimension	2.02" Dia x 0.13" H (51.4mm x 3.4mm)

WR111180-49F5-G	TDK Corporation, 1 Coil, 3 Layer 31.8µH Wireless Charging Coil Receiver 1.34Ohm, WR	View
WR301025-19M8-G	TDK Corporation, 1 Coil, 2 Layer 12.8µH Wireless Charging Coil Receiver 1.27Ohm Max, WR	View
WT525225-12F2-MA2-G	TDK Corporation, 1 Coil, 1 Layer 10.5µH Wireless Charging Coil Transmitter 60mOhm, WT	View
WR483265-13F5-G	TDK Corporation, 1 Coil, 1 Layer 10.1µH Wireless Charging Coil Receiver 270mOhm, WR	View
WT282890-16F2-G	TDK Corporation, 1 Coil, 2 Layer 7.4µH Wireless Charging Coil Transmitter 110mOhm, WT	View
WTM505090-10K2-5V-G1	TDK Corporation, 1 Coil, 1 Layer 6.3µH Wireless Charging Coil Transmitter 60mOhm Max, WTM	View
WT-505060-20K2-A10-G	TDK Corporation, 1 Coil, 2 Layer 24µH Wireless Charging Coil Transmitter 100mOhm Max, WT	View
WT1005690-12K2-A6-G	TDK Corporation, 3 Coil, 1 Layer 11.5 ~ 12.5µH Wireless Charging Coil Transmitter 80mOhm, WT	View
WT-525225-20K2-A1-G	TDK Corporation, 1 Coil, 2 Layer 24µH Wireless Charging Coil Transmitter 100mOhm Max, WT	View
WR483265-15F5-G	TDK Corporation, 1 Coil, 1 Layer 13.3µH Wireless Charging Coil Receiver 200mOhm, WR	View
WR282840-37K2-LR3	TDK Corporation, 1 Coil, 1 Layer 46µH Wireless Charging Coil Receiver 1.25Ohm, WR	View
WT-505060-8K2-LT	TDK Corporation, 1 Coil, 1 Layer 4.95µH Wireless Charging Coil Transmitter 30mOhm, WT	View

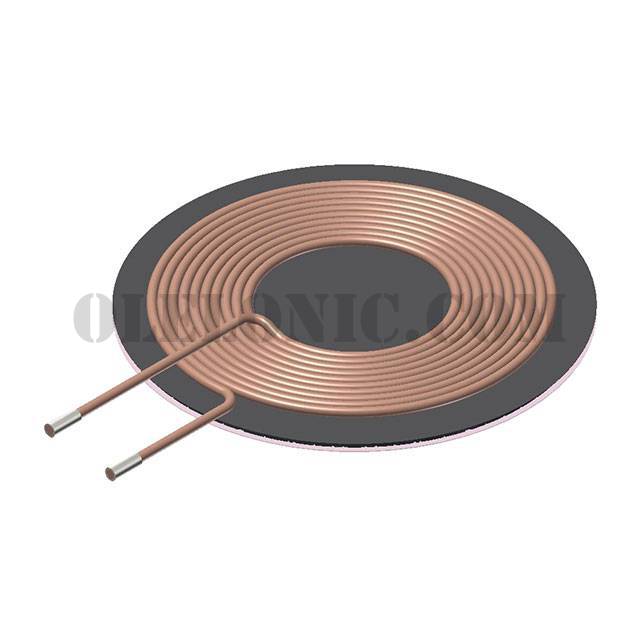

WT505090-10F2-A11-G1

Part NumberWT505090-10F2-A11-G1
