Categories	Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet	WT282890-16F2-G Spec
Standard Package	336
Manufacturer	TDK Corporation
Series	WT
Part Status	Active
Function	Transmitter
Type	1 Coil, 2 Layer
Inductance	7.4µH
Tolerance	-
DC Resistance (DCR)	110mOhm
Q @ Freq	-
Current Rating (Amps)	-
Current - Saturation	-
Frequency - Self Resonant	-
Operating Temperature	-
Size / Dimension	1.12" Dia x 0.10" H (28.4mm x 2.4mm)

WT-505060-10K2-A11-G	TDK Corporation, 1 Coil, 1 Layer 6.3µH Wireless Charging Coil Transmitter 60mOhm Max, WT	View
WT505090-20K2-A10-G	TDK Corporation, 1 Coil, 2 Layer 24µH Wireless Charging Coil Transmitter 100mOhm, WT	View
WT-525225-20K2-A1-G	TDK Corporation, 1 Coil, 2 Layer 24µH Wireless Charging Coil Transmitter 100mOhm Max, WT	View
WR222230-26M8-G	TDK Corporation, 1 Coil, 2 Layer 27µH Wireless Charging Coil Receiver 1.1Ohm Max, WR	View
WR483265-13F5-G	TDK Corporation, 1 Coil, 1 Layer 10.1µH Wireless Charging Coil Receiver 270mOhm, WR	View
WR483265-15F5-G	TDK Corporation, 1 Coil, 1 Layer 13.3µH Wireless Charging Coil Receiver 200mOhm, WR	View
WR151580-48F2-G	TDK Corporation, 1 Coil, 4 Layer 27.1µH Wireless Charging Coil Receiver 500mOhm, WR	View
WT202030-16M8-G	TDK Corporation, 1 Coil, 1 Layer 6.2µH Wireless Charging Coil Transmitter 190mOhm, WT	View
WR301025-19M8-G	TDK Corporation, 1 Coil, 2 Layer 12.8µH Wireless Charging Coil Receiver 1.27Ohm Max, WR	View
WT242490-30F2-G	TDK Corporation, 1 Coil, 2 Layer 12.9µH Wireless Charging Coil Transmitter 165mOhm, WT	View
WR282840-37K2-LR3	TDK Corporation, 1 Coil, 1 Layer 46µH Wireless Charging Coil Receiver 1.25Ohm, WR	View
WT202012-15F2-ID	TDK Corporation, 1 Coil, 2 Layer 6.2µH Wireless Charging Coil Transmitter 80mOhm, WT	View

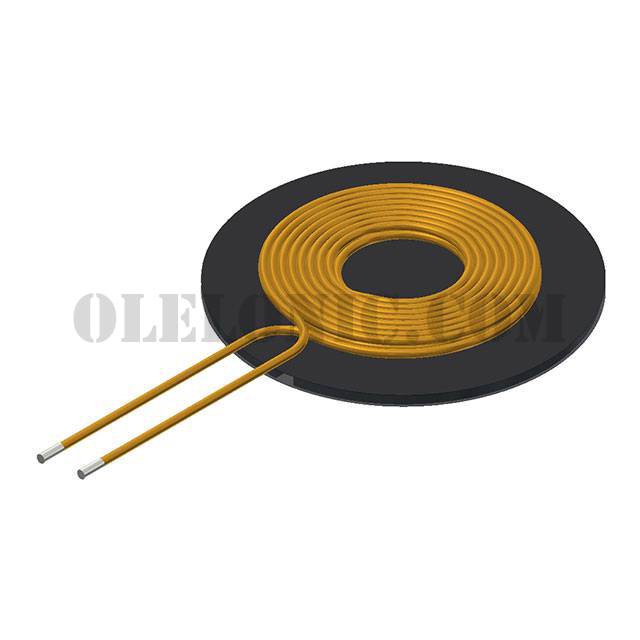

WT282890-16F2-G
