Categories	Inductors, Coils, Chokes / Wireless Charging Coils

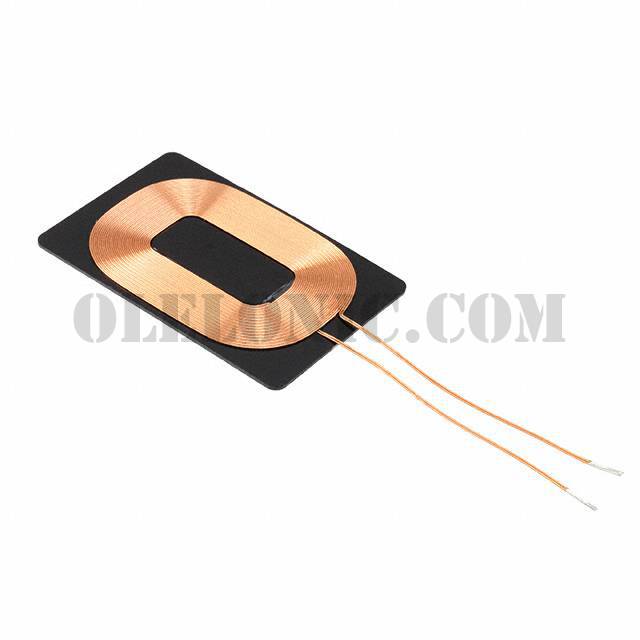

Datasheet	WR483265-15F5-G Overview
Standard Package	192
Manufacturer	TDK Corporation
Series	WR
Part Status	Active
Function	Receiver
Type	1 Coil, 1 Layer
Inductance	13.3µH
Tolerance	-
DC Resistance (DCR)	200mOhm
Q @ Freq	-
Current Rating (Amps)	-
Current - Saturation	-
Frequency - Self Resonant	-
Operating Temperature	-
Size / Dimension	1.89" L x 1.27" W x 0.04" H (48.2mm x 32.2mm x 1.2mm)
