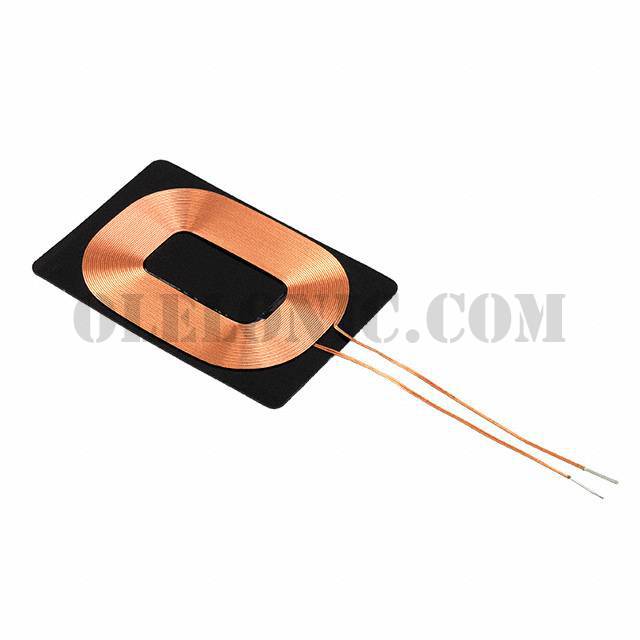

WR483245-15F5-G


WR483245-15F5-G

Part NumberWR483245-15F5-G

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

WR483245-15F5-G - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package192
ManufacturerTDK Corporation
SeriesWR
Part StatusActive
FunctionReceiver
Type1 Coil, 1 Layer
Inductance13µH
Tolerance-
DC Resistance (DCR)200mOhm
Q @ Freq-
Current Rating (Amps)-
Current - Saturation-
Frequency - Self Resonant-
Operating Temperature-
Size / Dimension1.89" L x 1.27" W x 0.03" H (48.2mm x 32.2mm x 1.0mm)
