Home/Product Catalog/Inductors, Coils, Chokes / Wireless Charging Coils/  WR202020-18M8-G

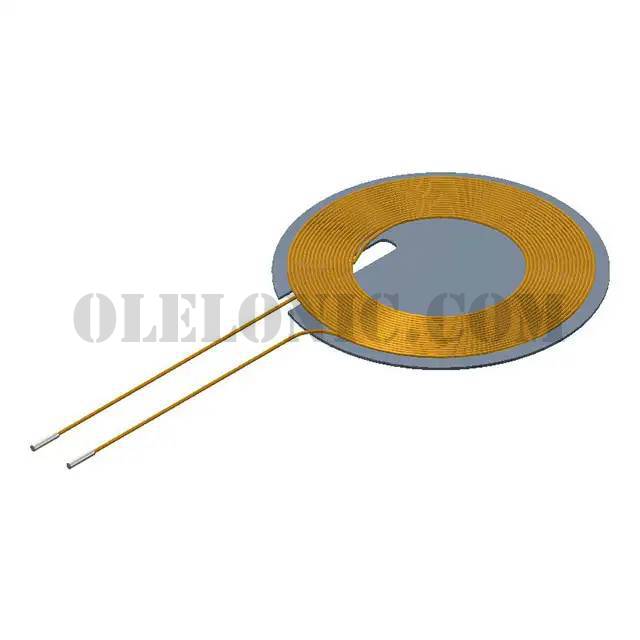

WR202020-18M8-G


WR202020-18M8-G

Part NumberWR202020-18M8-G

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

WR202020-18M8-G - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package540
ManufacturerTDK Corporation
SeriesWR
Part StatusActive
FunctionReceiver
Type1 Coil, 1 Layer
Inductance9.9µH
Tolerance-
DC Resistance (DCR)520mOhm
Q @ Freq-
Current Rating (Amps)-
Current - Saturation-
Frequency - Self Resonant-
Operating Temperature-
Size / Dimension0.79" Dia x 0.02" H (20.0mm x 0.6mm)
