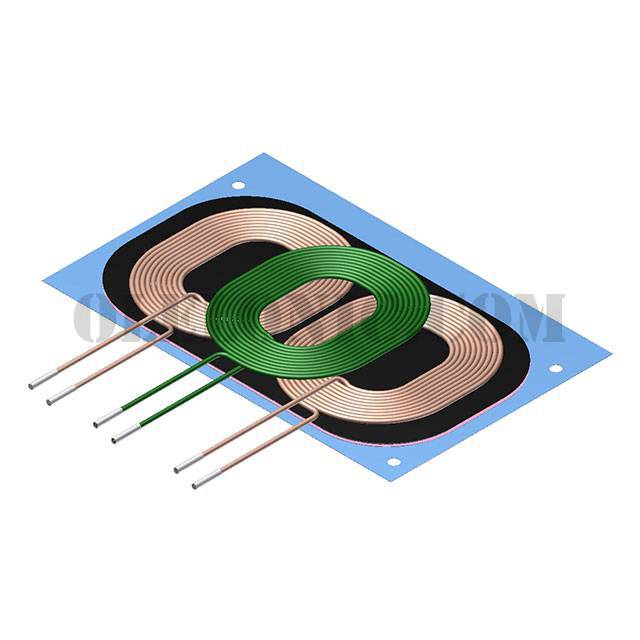

WT1005690-10F2-M8-G2


WT1005690-10F2-M8-G2

Part NumberWT1005690-10F2-M8-G2

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

WT1005690-10F2-M8-G2 - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package192
ManufacturerTDK Corporation
SeriesWT
Part StatusActive
FunctionTransmitter
Type3 Coil, 1 Layer
Inductance7.5µH, 8.5µH
Tolerance-
DC Resistance (DCR)50mOhm
Q @ Freq-
Current Rating (Amps)-
Current - Saturation-
Frequency - Self Resonant-
Operating Temperature-
Size / Dimension4.01" L x 2.26" W x 0.18" H (101.8mm x 57.3mm x 4.7mm)
