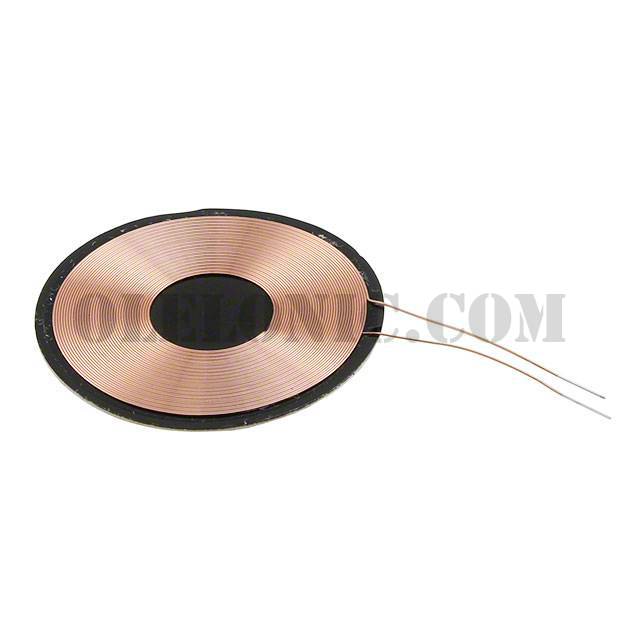

Categories	Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet	WR282840-37K2-LR3
Standard Package	200
Manufacturer	TDK Corporation
Series	WR
Part Status	Active
Function	Receiver
Type	1 Coil, 1 Layer
Inductance	46µH
Tolerance	-
DC Resistance (DCR)	1.25Ohm
Q @ Freq	-
Current Rating (Amps)	-
Current - Saturation	-
Frequency - Self Resonant	-
Operating Temperature	-

WR301025-19M8-G	TDK Corporation, 1 Coil, 2 Layer 12.8µH Wireless Charging Coil Receiver 1.27Ohm Max, WR	View
WT-505060-8K2-LT	TDK Corporation, 1 Coil, 1 Layer 4.95µH Wireless Charging Coil Transmitter 30mOhm, WT	View
WT282890-16F2-G	TDK Corporation, 1 Coil, 2 Layer 7.4µH Wireless Charging Coil Transmitter 110mOhm, WT	View
WR151580-48F2-G	TDK Corporation, 1 Coil, 4 Layer 27.1µH Wireless Charging Coil Receiver 500mOhm, WR	View
WR424245-13K2-G	TDK Corporation, 1 Coil, 1 Layer 11.9µH Wireless Charging Coil Receiver 220mOhm, WR	View
WR303050-15F5-G	TDK Corporation, 1 Coil, 2 Layer 12.3µH Wireless Charging Coil Receiver 410mOhm, WR	View
WT202080-28F2-G	TDK Corporation, 1 Coil, 4 Layer 20.9µH Wireless Charging Coil Transmitter 300mOhm, WT	View
WT1005690-10F2-M8-G2	TDK Corporation, 3 Coil, 1 Layer 7.5µH, 8.5µH Wireless Charging Coil Transmitter 50mOhm, WT	View
WT505090-10F2-LP-G1	TDK Corporation, 1 Coil, 1 Layer 6.3µH Wireless Charging Coil Transmitter 60mOhm, WT	View
WT242490-30F2-G	TDK Corporation, 1 Coil, 2 Layer 12.9µH Wireless Charging Coil Transmitter 165mOhm, WT	View
WR202010-18M8-ID	TDK Corporation, 1 Coil, 2 Layer 11µH Wireless Charging Coil Receiver 350mOhm, WR	View
WR202020-18M8-G	TDK Corporation, 1 Coil, 1 Layer 9.9µH Wireless Charging Coil Receiver 520mOhm, WR	View

WR282840-37K2-LR3

Part NumberWR282840-37K2-LR3
