Categories	Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet	WT-525225-20K2-A1-G Datasheet
Standard Package	72
Manufacturer	TDK Corporation
Series	WT
Part Status	Active
Function	Transmitter
Type	1 Coil, 2 Layer
Inductance	24µH
Tolerance	±10%
DC Resistance (DCR)	100mOhm Max
Q @ Freq	80 @ 100kHz
Current Rating (Amps)	-
Current - Saturation	-
Frequency - Self Resonant	-
Operating Temperature	-30°C ~ 70°C
Size / Dimension	2.05" L x 2.05" W x 0.22" H (52.0mm x 52.0mm x 5.6mm)

WT282890-16F2-G	TDK Corporation, 1 Coil, 2 Layer 7.4µH Wireless Charging Coil Transmitter 110mOhm, WT	View
WT202080-28F2-G	TDK Corporation, 1 Coil, 4 Layer 20.9µH Wireless Charging Coil Transmitter 300mOhm, WT	View
WT242490-30F2-G	TDK Corporation, 1 Coil, 2 Layer 12.9µH Wireless Charging Coil Transmitter 165mOhm, WT	View
WT505090-10K2-A11-G	TDK Corporation, 1 Coil, 1 Layer 6.3µH Wireless Charging Coil Transmitter 60mOhm, WT	View
WTM505090-10K2-5V-G1	TDK Corporation, 1 Coil, 1 Layer 6.3µH Wireless Charging Coil Transmitter 60mOhm Max, WTM	View
WR221230-36M8-G	TDK Corporation, 1 Coil, 2 Layer 27.9µH Wireless Charging Coil Receiver 1.21Ohm Max, WR	View
WR121210-27M8-ID	TDK Corporation, 1 Coil, 1 Layer 8.32µH Wireless Charging Coil Receiver 950mOhm, WR	View
WR483265-15F5-G	TDK Corporation, 1 Coil, 1 Layer 13.3µH Wireless Charging Coil Receiver 200mOhm, WR	View
WT-505060-10K2-A11-G	TDK Corporation, 1 Coil, 1 Layer 6.3µH Wireless Charging Coil Transmitter 60mOhm Max, WT	View
WT505090-10F2-LP-G1	TDK Corporation, 1 Coil, 1 Layer 6.3µH Wireless Charging Coil Transmitter 60mOhm, WT	View
WT202012-15F2-ID	TDK Corporation, 1 Coil, 2 Layer 6.2µH Wireless Charging Coil Transmitter 80mOhm, WT	View
WR483265-13F5-G	TDK Corporation, 1 Coil, 1 Layer 10.1µH Wireless Charging Coil Receiver 270mOhm, WR	View

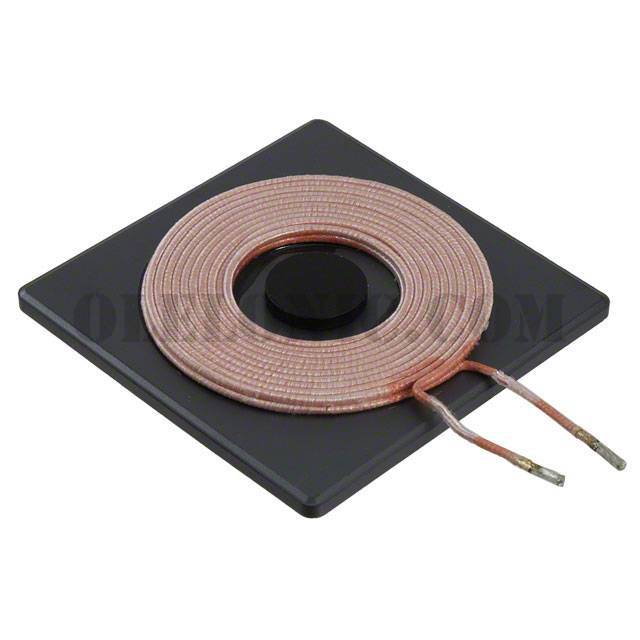

WT-525225-20K2-A1-G
