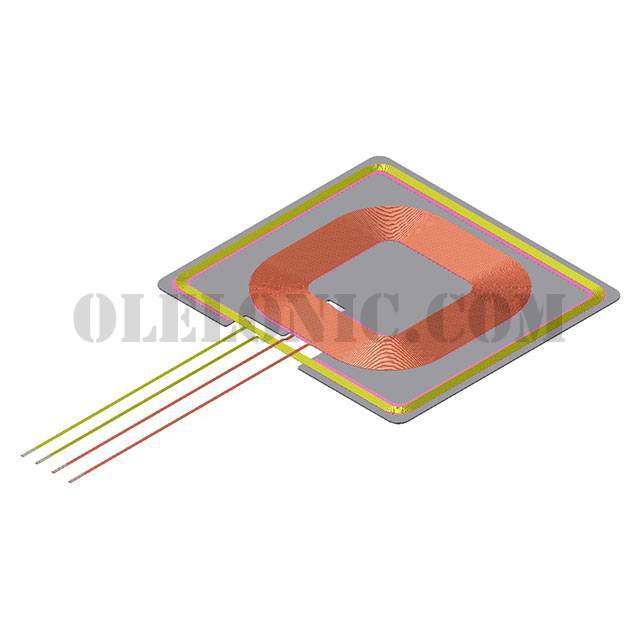

WR524825-17M6-NF-G


WR524825-17M6-NF-G

Part NumberWR524825-17M6-NF-G

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

WR524825-17M6-NF-G - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package132
ManufacturerTDK Corporation
SeriesWR
Part StatusActive
FunctionReceiver
Type1 Coil, 1 Layer
Inductance16.8µH
Tolerance-
DC Resistance (DCR)750mOhm
Q @ Freq-
Current Rating (Amps)-
Current - Saturation-
Frequency - Self Resonant-
Operating Temperature-
Size / Dimension2.05" L x 1.89" W x 0.02" H (52.0mm x 48.0mm x 0.5mm)
