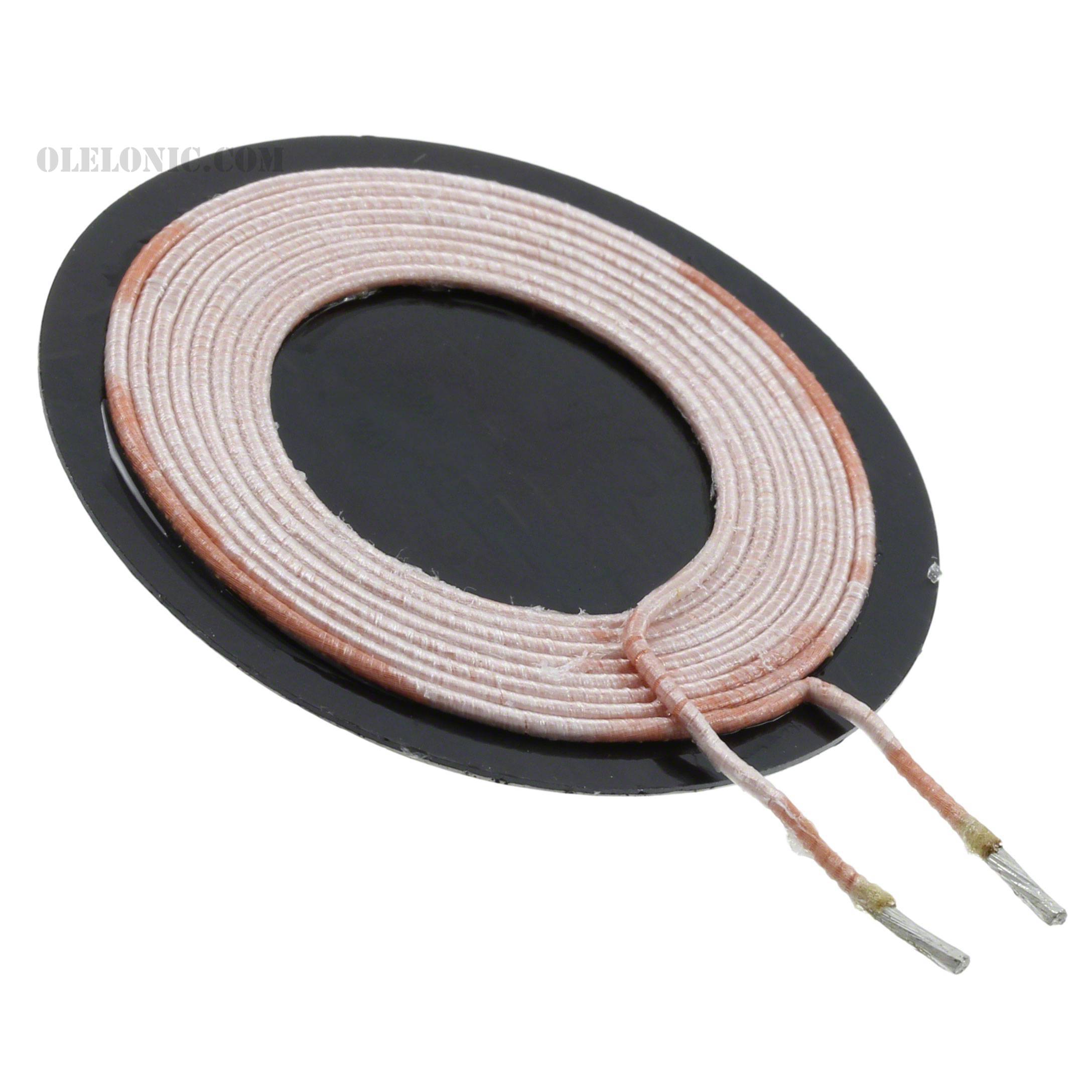

Categories	Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet	WT-505060-8K2-LT
Standard Package	216
Manufacturer	TDK Corporation
Series	WT
Part Status	Active
Function	Transmitter
Type	1 Coil, 1 Layer
Inductance	4.95µH
Tolerance	-
DC Resistance (DCR)	30mOhm
Q @ Freq	97 @ 100kHz
Current Rating (Amps)	-
Current - Saturation	-
Frequency - Self Resonant	-
Operating Temperature	-
