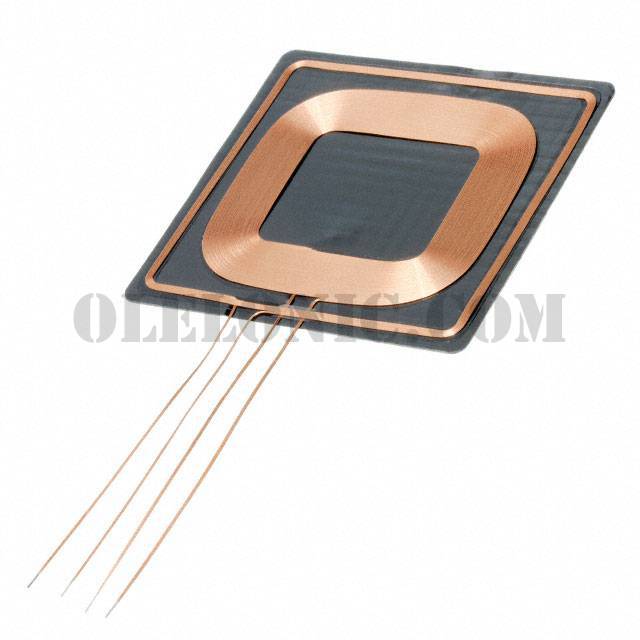

WR524830-16F3-NF-G


WR524830-16F3-NF-G

Part NumberWR524830-16F3-NF-G

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

WR524830-16F3-NF-G - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package132
ManufacturerTDK Corporation
SeriesWR
Part StatusActive
FunctionReceiver
Type1 Coil, 1 Layer
Inductance19.5µH
Tolerance-
DC Resistance (DCR)800mOhm
Q @ Freq-
Current Rating (Amps)-
Current - Saturation-
Frequency - Self Resonant-
Operating Temperature-
Size / Dimension2.05" L x 1.89" W x 0.02" H (52.0mm x 48.0mm x 0.6mm)
