Categories	Inductors, Coils, Chokes / Wireless Charging Coils

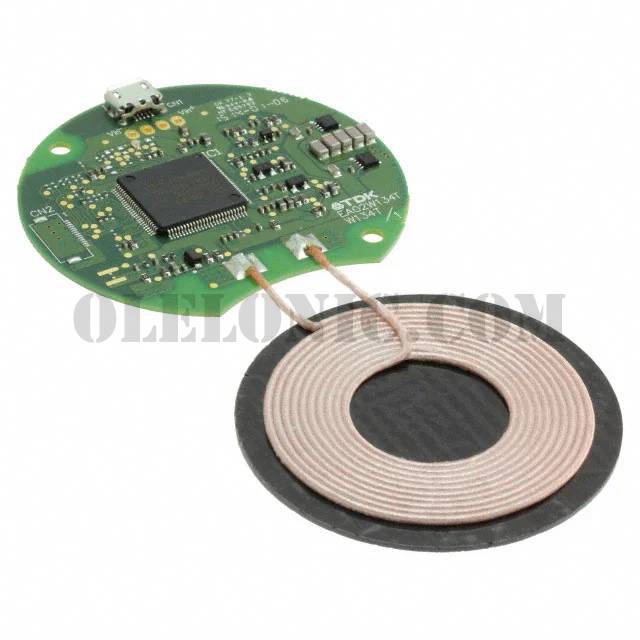

Datasheet	WTM505090-10K2-5V-G1 Overview
Standard Package	80
Manufacturer	TDK Corporation
Series	WTM
Part Status	Active
Function	Transmitter
Type	1 Coil, 1 Layer
Inductance	6.3µH
Tolerance	-
DC Resistance (DCR)	60mOhm Max
Q @ Freq	-
Current Rating (Amps)	-
Current - Saturation	-
Frequency - Self Resonant	-
Operating Temperature	-
