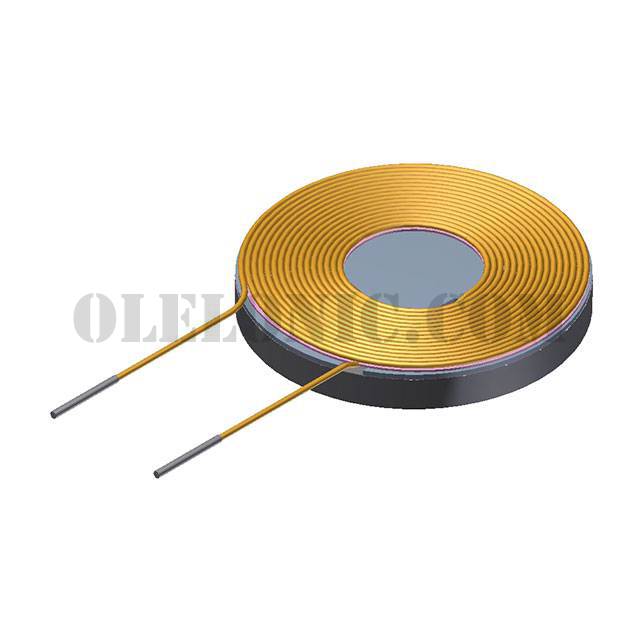

Categories	Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet	WT202030-16M8-G Spec
Standard Package	560
Manufacturer	TDK Corporation
Series	WT
Part Status	Active
Function	Transmitter
Type	1 Coil, 1 Layer
Inductance	6.2µH
Tolerance	-
DC Resistance (DCR)	190mOhm
Q @ Freq	-
Current Rating (Amps)	-
Current - Saturation	-
Frequency - Self Resonant	-
Operating Temperature	-
