Categories	Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet	WR424245-13K2-G Spec
Standard Package	240
Manufacturer	TDK Corporation
Series	WR
Part Status	Active
Function	Receiver
Type	1 Coil, 1 Layer
Inductance	11.9µH
DC Resistance (DCR)	220mOhm
Size / Dimension	1.65" L x 1.65" W x 0.04" H (42.0mm x 42.0mm x 0.9mm)

WT242490-30F2-G	TDK Corporation, 1 Coil, 2 Layer 12.9µH Wireless Charging Coil Transmitter 165mOhm, WT	View
WT-505060-10K2-A11-G	TDK Corporation, 1 Coil, 1 Layer 6.3µH Wireless Charging Coil Transmitter 60mOhm Max, WT	View
WT282890-16F2-G	TDK Corporation, 1 Coil, 2 Layer 7.4µH Wireless Charging Coil Transmitter 110mOhm, WT	View
WR483265-15F5-G	TDK Corporation, 1 Coil, 1 Layer 13.3µH Wireless Charging Coil Receiver 200mOhm, WR	View
WT505090-10F2-LP-G	TDK Corporation, 1 Coil, 1 Layer 6.3µH Wireless Charging Coil Transmitter 60mOhm, WT	View
WT505090-20K2-A10-G	TDK Corporation, 1 Coil, 2 Layer 24µH Wireless Charging Coil Transmitter 100mOhm, WT	View
WR464650-10K2-FS3	TDK Corporation, 1 Coil, 1 Layer 7.3µH Wireless Charging Coil Receiver 70mOhm, WR	View
WT-505060-20K2-A10-G	TDK Corporation, 1 Coil, 2 Layer 24µH Wireless Charging Coil Transmitter 100mOhm Max, WT	View
WR111180-49F5-G	TDK Corporation, 1 Coil, 3 Layer 31.8µH Wireless Charging Coil Receiver 1.34Ohm, WR	View
WT505090-10F2-LP-G1	TDK Corporation, 1 Coil, 1 Layer 6.3µH Wireless Charging Coil Transmitter 60mOhm, WT	View
WT-525225-20K2-A1-G	TDK Corporation, 1 Coil, 2 Layer 24µH Wireless Charging Coil Transmitter 100mOhm Max, WT	View
WR202020-18M8-G	TDK Corporation, 1 Coil, 1 Layer 9.9µH Wireless Charging Coil Receiver 520mOhm, WR	View

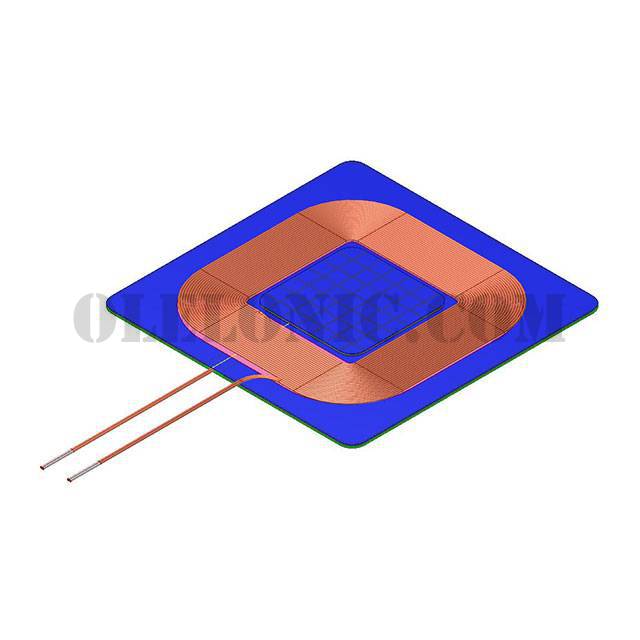

WR424245-13K2-G
