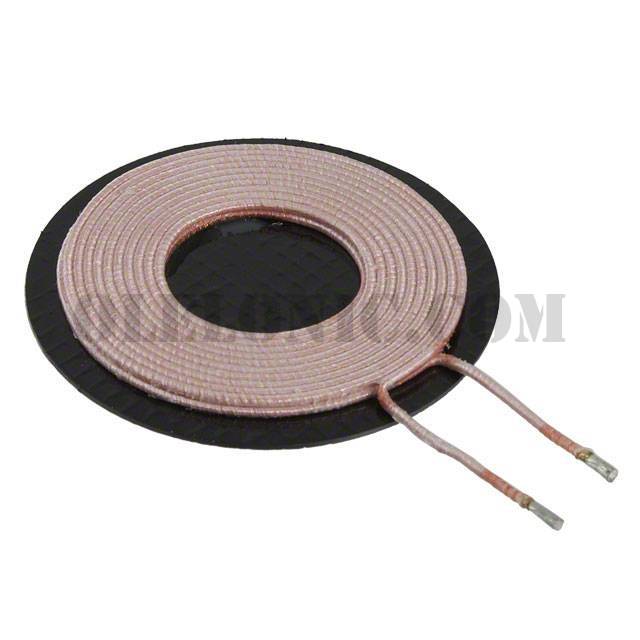

WT-505060-20K2-A10-G


WT-505060-20K2-A10-G

Part NumberWT-505060-20K2-A10-G

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

WT-505060-20K2-A10-G - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package72
ManufacturerTDK Corporation
SeriesWT
Part StatusActive
FunctionTransmitter
Type1 Coil, 2 Layer
Inductance24µH
Tolerance±10%
DC Resistance (DCR)100mOhm Max
Q @ Freq80 @ 100kHz
Current Rating (Amps)-
Current - Saturation-
Frequency - Self Resonant-
Operating Temperature-30°C ~ 70°C
Size / Dimension1.97" Dia x 0.13" H (50.0mm x 3.4mm)
