Categories	Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet	WR483265-13F5-G Spec
Standard Package	192
Manufacturer	TDK Corporation
Series	WR
Part Status	Active
Function	Receiver
Type	1 Coil, 1 Layer
Inductance	10.1µH
Tolerance	-
DC Resistance (DCR)	270mOhm
Q @ Freq	-
Current Rating (Amps)	-
Current - Saturation	-
Frequency - Self Resonant	-
Operating Temperature	-
Size / Dimension	1.90" L x 1.27" W x 0.05" H (48.2mm x 32.2mm x 1.3mm)

WR303050-15F5-G	TDK Corporation, 1 Coil, 2 Layer 12.3µH Wireless Charging Coil Receiver 410mOhm, WR	View
WR444030-16F3-G	TDK Corporation, 1 Coil, 1 Layer 19µH Wireless Charging Coil Receiver 700mOhm, WR	View
WT-525225-20K2-A1-G	TDK Corporation, 1 Coil, 2 Layer 24µH Wireless Charging Coil Transmitter 100mOhm Max, WT	View
WR151580-48F2-G	TDK Corporation, 1 Coil, 4 Layer 27.1µH Wireless Charging Coil Receiver 500mOhm, WR	View
WT505090-10K2-A11-G	TDK Corporation, 1 Coil, 1 Layer 6.3µH Wireless Charging Coil Transmitter 60mOhm, WT	View
WT-505060-10K2-A11-G	TDK Corporation, 1 Coil, 1 Layer 6.3µH Wireless Charging Coil Transmitter 60mOhm Max, WT	View
WT545490-11K2-FS	TDK Corporation, 1 Coil, 2 Layer 8.9µH Wireless Charging Coil Transmitter 60mOhm, WT	View
WT505090-10F2-A11-G1	TDK Corporation, 1 Coil, 1 Layer 6.3µH Wireless Charging Coil Transmitter 60mOhm, WT	View
WT-505060-20K2-A10-G	TDK Corporation, 1 Coil, 2 Layer 24µH Wireless Charging Coil Transmitter 100mOhm Max, WT	View
WR444025-17M6-G	TDK Corporation, 1 Coil, 1 Layer 16.7µH Wireless Charging Coil Receiver 650mOhm, WR	View
WT525225-12F2-MA2-G	TDK Corporation, 1 Coil, 1 Layer 10.5µH Wireless Charging Coil Transmitter 60mOhm, WT	View
WT1005690-12K2-A6-G	TDK Corporation, 3 Coil, 1 Layer 11.5 ~ 12.5µH Wireless Charging Coil Transmitter 80mOhm, WT	View

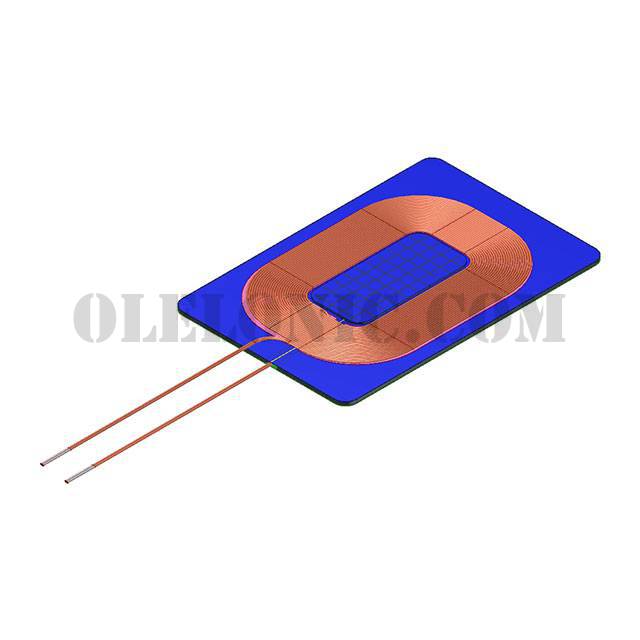

WR483265-13F5-G
