Categories	Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet	WR202010-18M8-SM Spec
Standard Package	675
Manufacturer	TDK Corporation
Series	WR
Part Status	Active
Function	Receiver
Type	1 Coil, 2 Layer
Inductance	10.68µH
Tolerance	±5%
DC Resistance (DCR)	350mOhm
Q @ Freq	-
Current Rating (Amps)	-
Current - Saturation	-
Frequency - Self Resonant	-
Operating Temperature	-
Size / Dimension	0.79" Dia x 0.03" H (20.0mm x 0.8mm)

WR301025-19M8-G	TDK Corporation, 1 Coil, 2 Layer 12.8µH Wireless Charging Coil Receiver 1.27Ohm Max, WR	View
WT-505060-20K2-A10-G	TDK Corporation, 1 Coil, 2 Layer 24µH Wireless Charging Coil Transmitter 100mOhm Max, WT	View
WR222230-26M8-G	TDK Corporation, 1 Coil, 2 Layer 27µH Wireless Charging Coil Receiver 1.1Ohm Max, WR	View
WR555540-16K2-FS2	TDK Corporation, 1 Coil, 2 Layer 15.8µH Wireless Charging Coil Receiver 100mOhm, WR	View
WT282890-16F2-G	TDK Corporation, 1 Coil, 2 Layer 7.4µH Wireless Charging Coil Transmitter 110mOhm, WT	View
WT-525225-20K2-A1-G	TDK Corporation, 1 Coil, 2 Layer 24µH Wireless Charging Coil Transmitter 100mOhm Max, WT	View
WR524830-16F3-NF-G	TDK Corporation, 1 Coil, 1 Layer 19.5µH Wireless Charging Coil Receiver 800mOhm, WR	View
WTM505090-10K2-5V-G1	TDK Corporation, 1 Coil, 1 Layer 6.3µH Wireless Charging Coil Transmitter 60mOhm Max, WTM	View
WT525225-12F2-MA2-G	TDK Corporation, 1 Coil, 1 Layer 10.5µH Wireless Charging Coil Transmitter 60mOhm, WT	View
WR303050-15F5-G	TDK Corporation, 1 Coil, 2 Layer 12.3µH Wireless Charging Coil Receiver 410mOhm, WR	View
WT505090-10K2-A11-G	TDK Corporation, 1 Coil, 1 Layer 6.3µH Wireless Charging Coil Transmitter 60mOhm, WT	View
WT202012-15F2-ID	TDK Corporation, 1 Coil, 2 Layer 6.2µH Wireless Charging Coil Transmitter 80mOhm, WT	View

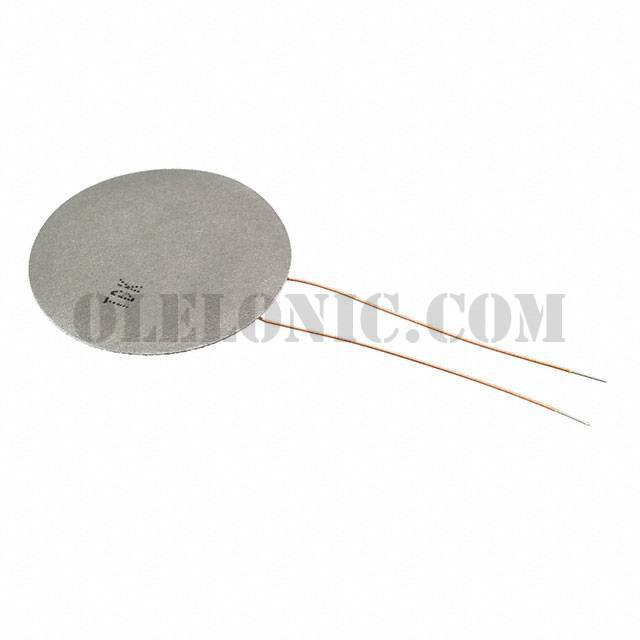

WR202010-18M8-SM

Part NumberWR202010-18M8-SM
