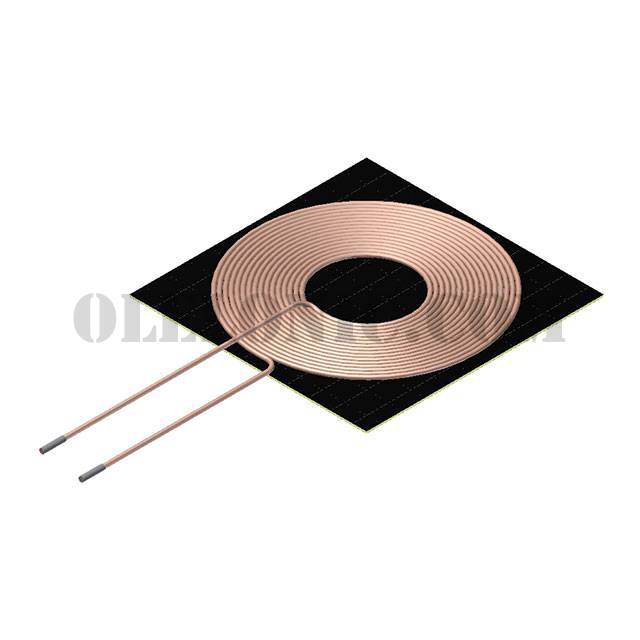

WR555540-16K2-FS2


WR555540-16K2-FS2

Part NumberWR555540-16K2-FS2

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

WR555540-16K2-FS2 - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package180
ManufacturerTDK Corporation
SeriesWR
Part StatusActive
FunctionReceiver
Type1 Coil, 2 Layer
Inductance15.8µH
Tolerance-
DC Resistance (DCR)100mOhm
Q @ Freq98 @ 100kHz
Current Rating (Amps)-
Current - Saturation-
Frequency - Self Resonant-
Operating Temperature-
Size / Dimension2.13" L x 2.13" W x 0.09" H (54.0mm x 54.0mm x 2.4mm)
