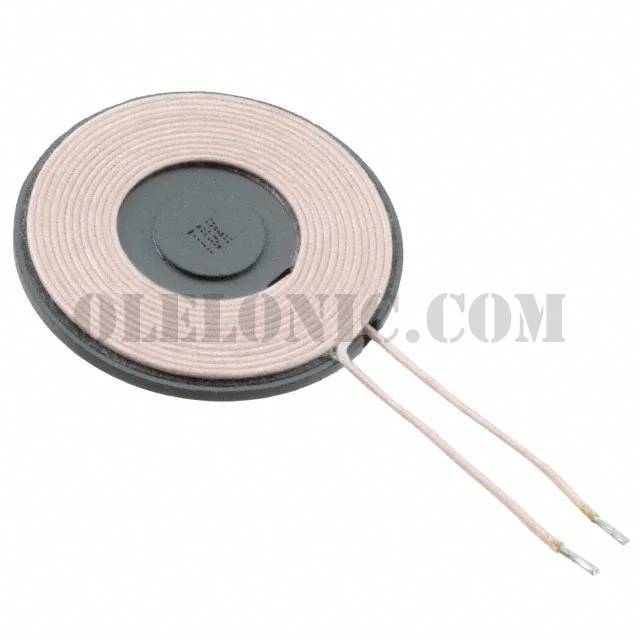

Categories	Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet	WT303012-12F2-ID
Standard Package	420
Manufacturer	TDK Corporation
Series	WT
Part Status	Active
Function	Transmitter
Type	1 Coil, 2 Layer
Inductance	6.3µH
Tolerance	±5%
DC Resistance (DCR)	90mOhm
Q @ Freq	-
Current Rating (Amps)	-
Current - Saturation	-
Frequency - Self Resonant	-
Operating Temperature	-
Size / Dimension	1.18" Dia x 0.08" H (30.0mm x 2.0mm)
