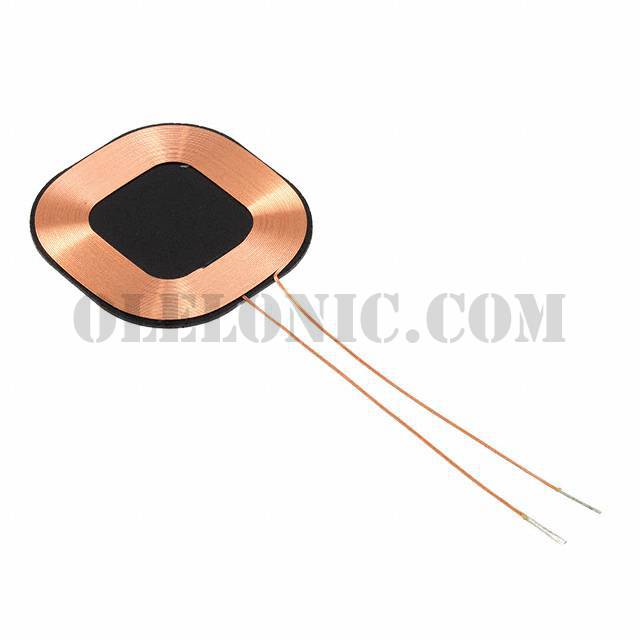

WR303050-15F5-G


WR303050-15F5-G

Part NumberWR303050-15F5-G

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

WR303050-15F5-G - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package96
ManufacturerTDK Corporation
SeriesWR
Part StatusActive
FunctionReceiver
Type1 Coil, 2 Layer
Inductance12.3µH
Tolerance-
DC Resistance (DCR)410mOhm
Q @ Freq-
Current Rating (Amps)-
Current - Saturation-
Frequency - Self Resonant-
Operating Temperature-
Size / Dimension1.18" L x 1.16" W x 0.03" H (30.0mm x 29.6mm x 1.0mm)
