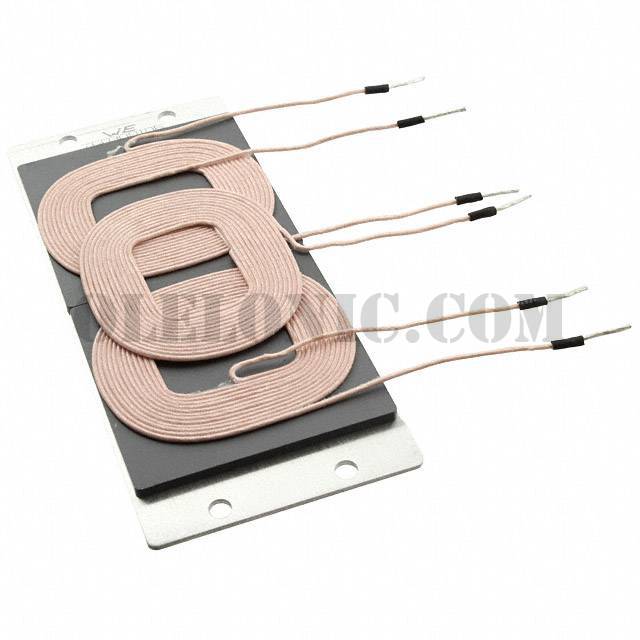

760308106


760308106

Part Number760308106

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

760308106 - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package6
ManufacturerWurth Electronics Inc.
SeriesWE-WPCC
Part StatusActive
FunctionTransmitter
Type3 Coil, 1 Layer
Inductance12.5µH, 11.5µH, 12.5µH
Tolerance-
DC Resistance (DCR)65mOhm
Q @ Freq140 @ 125kHz
Current Rating (Amps)10A
Current - Saturation10A
Frequency - Self Resonant-
Operating Temperature-
Size / Dimension5.12" L x 0.28" W x 2.15" H (130.0mm x 7.0mm x 54.7mm)
