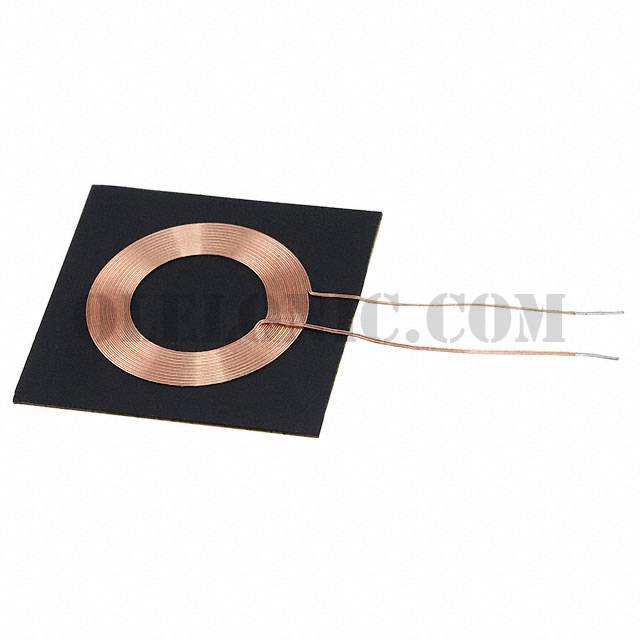

760308102212


760308102212

Part Number760308102212

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

760308102212 - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package96
ManufacturerWurth Electronics Inc.
SeriesWE-WPCC
Part StatusActive
FunctionReceiver
Type1 Coil, 1 Layer
Inductance5.4µH
Tolerance±10%
DC Resistance (DCR)240mOhm Max
Q @ Freq18 @ 125kHz
Current Rating (Amps)2A
Current - Saturation4A
Frequency - Self Resonant25MHz
Operating Temperature-20°C ~ 105°C
Size / Dimension1.14" L x 1.14" W x 0.04" H (29.0mm x 29.0mm x 0.9mm)
