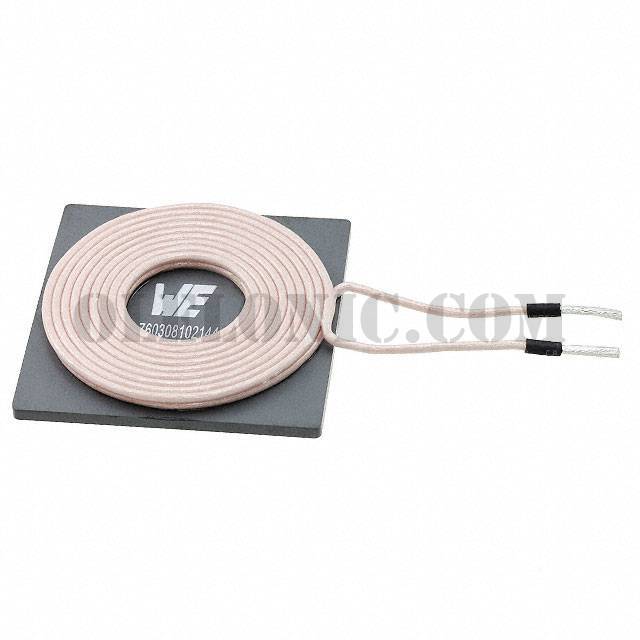

760308102144


760308102144

Part Number760308102144

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

760308102144 - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package14
ManufacturerWurth Electronics Inc.
SeriesWE-WPCC
Part StatusActive
FunctionTransmitter
Type1 Coil, 2 Layer
Inductance19.5µH
Tolerance±10%
DC Resistance (DCR)45mOhm Max
Q @ Freq220 @ 125kHz
Current Rating (Amps)9.5A
Current - Saturation20A
Frequency - Self Resonant5MHz
Operating Temperature-20°C ~ 105°C
Size / Dimension2.10" L x 2.10" W x 0.28" H (53.30mm x 53.30mm x 7.00mm)
