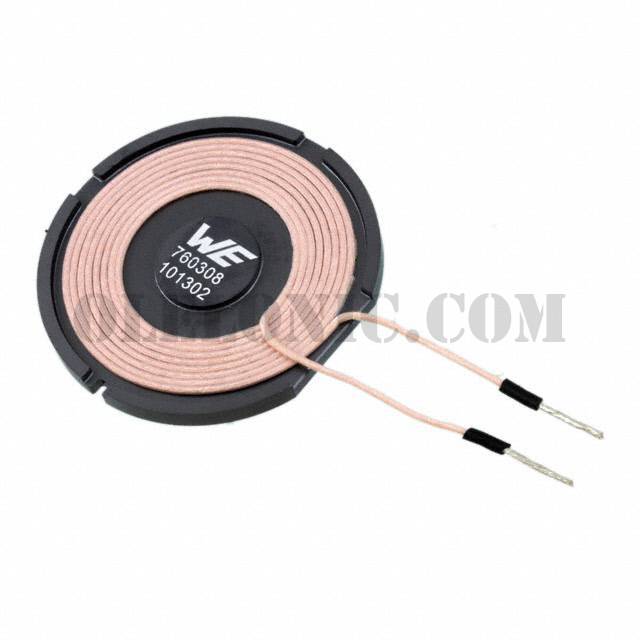

760308101302


760308101302

Part Number760308101302

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

760308101302 - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package20
ManufacturerWurth Electronics Inc.
SeriesWE-WPCC
Part StatusActive
FunctionTransmitter
Type1 Coil, 1 Layer
Inductance5.3µH
Tolerance±10%
DC Resistance (DCR)33mOhm
Q @ Freq100 @ 125kHz
Current Rating (Amps)8A
Current - Saturation10A
Frequency - Self Resonant27MHz
Operating Temperature-20°C ~ 105°C
Size / Dimension1.97" Dia x 0.19" H (50.0mm x 4.7mm)
