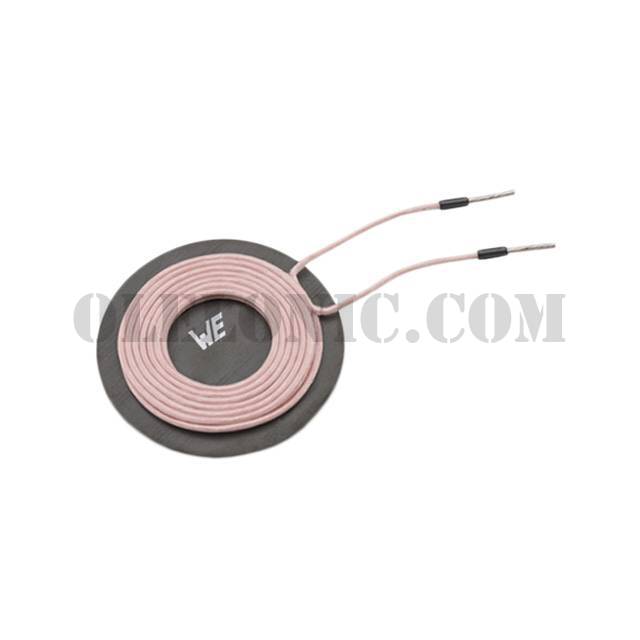

760308101141


760308101141

Part Number760308101141

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

760308101141 - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package20
ManufacturerWurth Electronics Inc.
SeriesWE-WPCC
Part StatusActive
FunctionTransmitter
Type1 Coil, 1 Layer
Inductance10µH
Tolerance±10%
DC Resistance (DCR)30mOhm Max
Q @ Freq220 @ 125kHz
Current Rating (Amps)9A
Current - Saturation16A
Frequency - Self Resonant11MHz
Operating Temperature-20°C ~ 105°C
Size / Dimension1.97" Dia x 0.20" H (50.0mm x 5.0mm)
