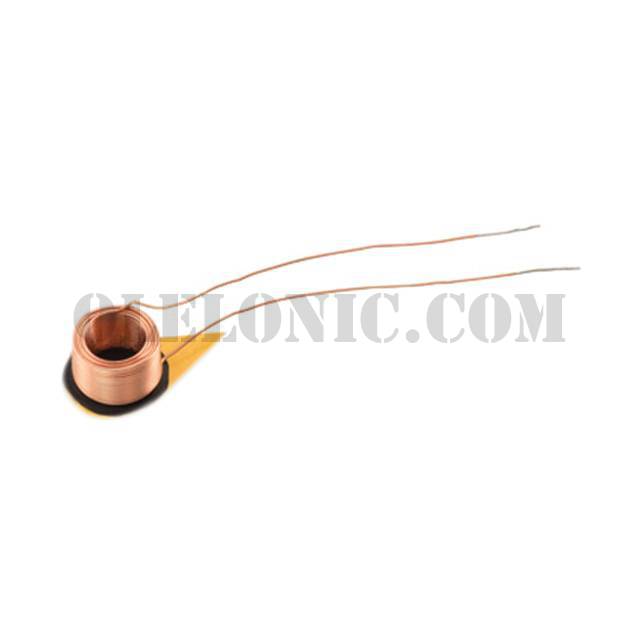

760308101221


760308101221

Part Number760308101221

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

760308101221 - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package128
ManufacturerWurth Electronics Inc.
SeriesWE-WPCC
Part StatusActive
FunctionReceiver
Type1 Coil, 1 Layer
Inductance24µH
Tolerance±10%
DC Resistance (DCR)1.15Ohm Max
Q @ Freq16 @ 125kHz
Current Rating (Amps)400mA
Current - Saturation1A
Frequency - Self Resonant10MHz
Operating Temperature-20°C ~ 105°C
Size / Dimension0.24" Dia x 0.16" H (6.0mm x 4.0mm)
