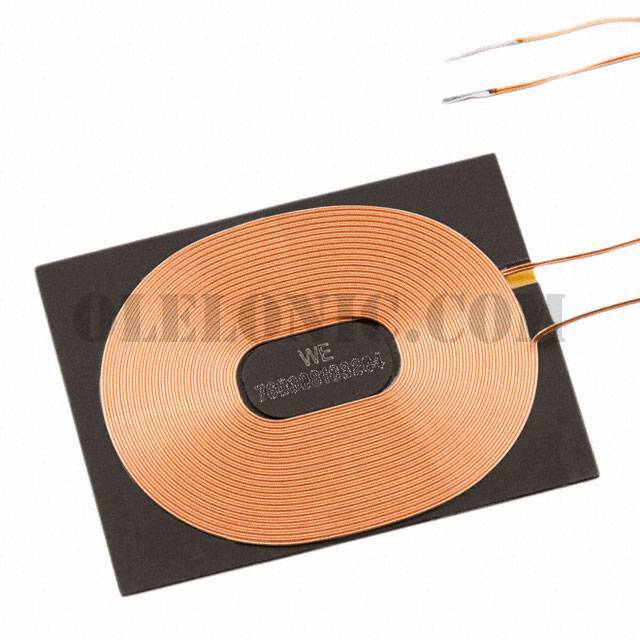

760308103204


760308103204

Part Number760308103204

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

760308103204 - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package48
ManufacturerWurth Electronics Inc.
SeriesWE-WPCC
Part StatusActive
FunctionReceiver
Type1 Coil, 1 Layer
Inductance16.7µH
Tolerance±10%
DC Resistance (DCR)430mOhm
Q @ Freq32 @ 125kHz
Current Rating (Amps)1A
Current - Saturation4A
Frequency - Self Resonant11MHz
Operating Temperature-20°C ~ 105°C
Size / Dimension1.52" L x 1.20" W x 0.03" H (38.5mm x 30.5mm x 0.83mm)
