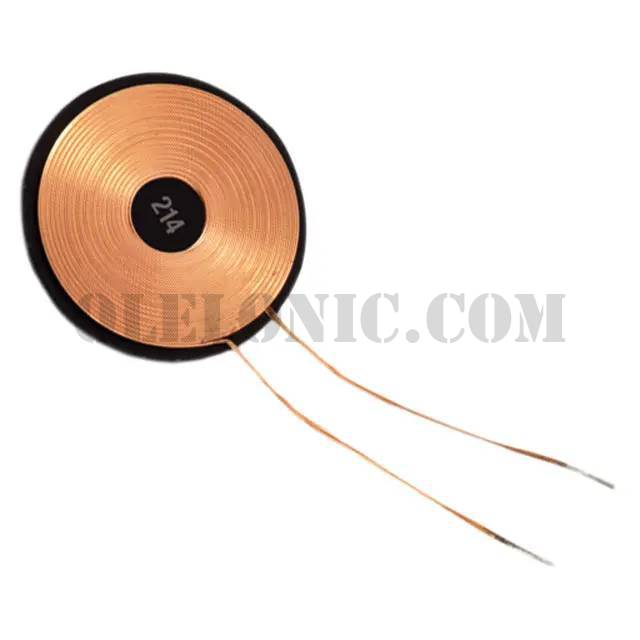

760308101214


760308101214

Part Number760308101214

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

760308101214 - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package24
ManufacturerWurth Electronics Inc.
SeriesWE-WPCC
Part StatusActive
FunctionReceiver
Type1 Coil, 1 Layer
Inductance26µH
Tolerance±10%
DC Resistance (DCR)520mOhm Max
Q @ Freq25 @ 125kHz
Current Rating (Amps)1.1A
Current - Saturation2A
Frequency - Self Resonant11MHz
Operating Temperature-20°C ~ 105°C
Size / Dimension0.75" Dia x 0.03" H (19.0mm x 0.8mm)
