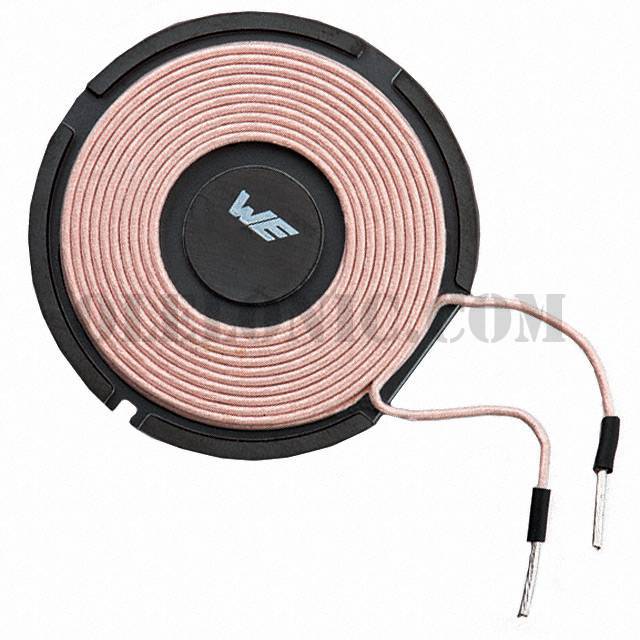

760308100110


760308100110

Part Number760308100110

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

760308100110 - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package20
ManufacturerWurth Electronics Inc.
SeriesWE-WPCC
Part StatusActive
FunctionTransmitter
Type1 Coil, 1 Layer
Inductance24µH
Tolerance±10%
DC Resistance (DCR)70mOhm
Q @ Freq180 @ 125kHz
Current Rating (Amps)6A
Current - Saturation10A
Frequency - Self Resonant5MHz
Operating Temperature-20°C ~ 105°C
Size / Dimension1.97" Dia x 0.24" H (50.0mm x 6.0mm)
