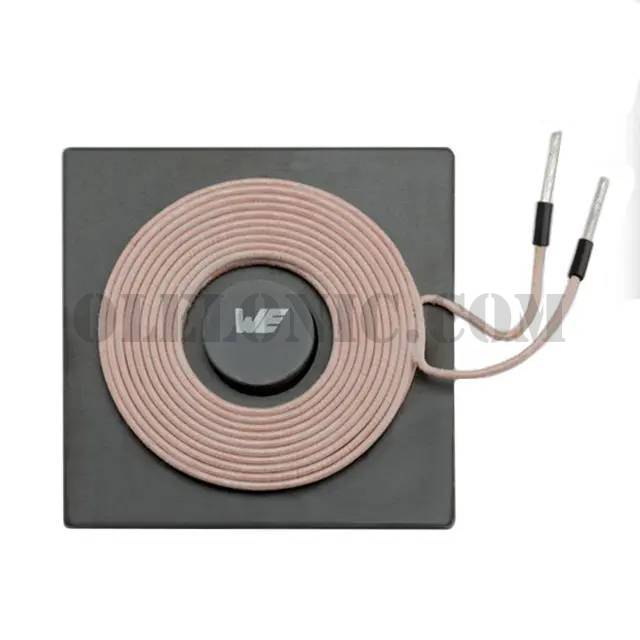

760308101104


760308101104

Part Number760308101104

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

760308101104 - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package66
ManufacturerWurth Electronics Inc.
SeriesWE-WPCC
Part StatusActive
FunctionTransmitter
Type1 Coil, 1 Layer
Inductance6.3µH
Tolerance±10%
DC Resistance (DCR)125mOhm Max
Q @ Freq42 @ 125kHz
Current Rating (Amps)2.5A
Current - Saturation6A
Frequency - Self Resonant20MHz
Operating Temperature-20°C ~ 105°C
Size / Dimension0.81" Dia x 0.10" H (20.5mm x 2.6mm)
