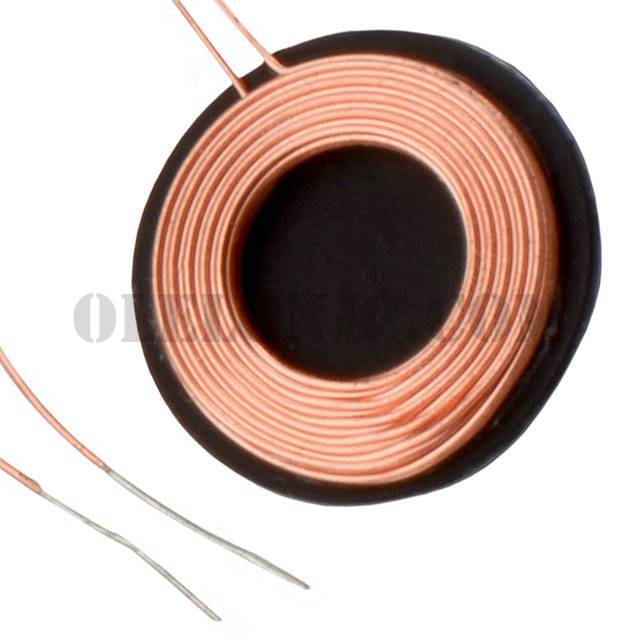

760308101208A


760308101208A

Part Number760308101208A

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

760308101208A - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package500
ManufacturerWurth Electronics Inc.
SeriesWE-WPCC
Part StatusActive
FunctionReceiver
Type1 Coil, 1 Layer
Inductance18µH
Tolerance±10%
DC Resistance (DCR)650mOhm Max
Q @ Freq18 @ 125kHz
Current Rating (Amps)700mA
Current - Saturation2A
Frequency - Self Resonant24MHz
Operating Temperature-20°C ~ 105°C
Size / Dimension0.39" Dia x 0.07" H (10.0mm x 1.7mm)
