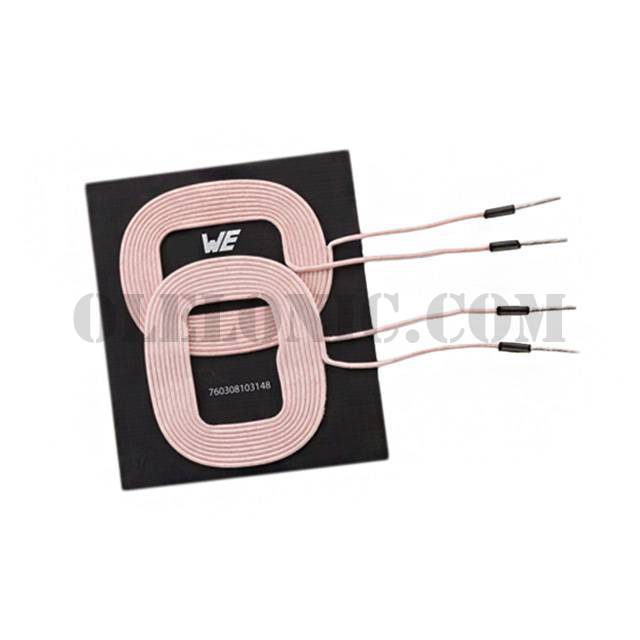

760308103148


760308103148

Part Number760308103148

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

760308103148 - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package12
ManufacturerWurth Electronics Inc.
SeriesWE-WPCC
Part StatusActive
FunctionReceiver, Transmitter
Type2 Coil, 1 Layer
Inductance6.9µH, 6.4µH
Tolerance±10%
DC Resistance (DCR)52mOhm Max
Q @ Freq120 @ 125kHz, 115 @ 125kHz
Current Rating (Amps)8.5A
Current - Saturation20A
Frequency - Self Resonant15MHz, 19MHz
Operating Temperature-20°C ~ 105°C
Size / Dimension2.80" L x 2.40" W x 0.16" H (71.0mm x 61.0mm x 4.0mm)
