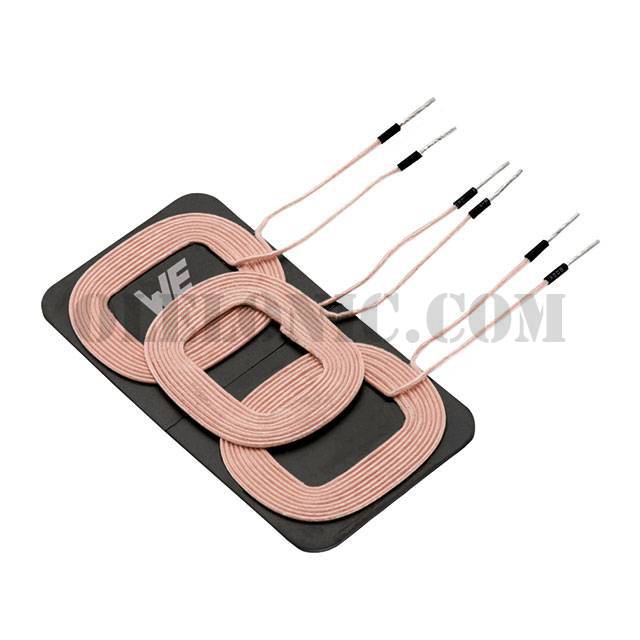

760308104120


760308104120

Part Number760308104120

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

760308104120 - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package6
ManufacturerWurth Electronics Inc.
SeriesWE-WPCC
Part StatusActive
FunctionTransmitter
Type3 Coil, 1 Layer
Inductance6.9µH, 6.4µH, 6.9µH
Tolerance±10%
DC Resistance (DCR)45mOhm
Q @ Freq100 @ 125kHz
Current Rating (Amps)9A
Current - Saturation12A
Frequency - Self Resonant15MHz
Operating Temperature-20°C ~ 105°C
