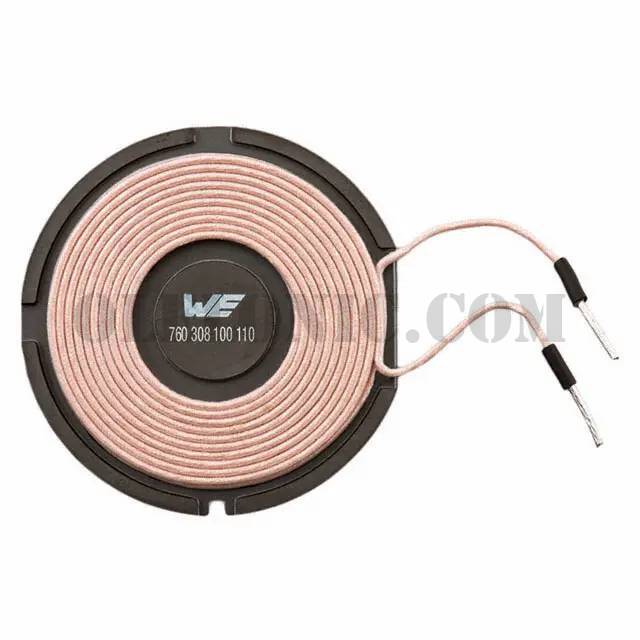

760308101103


760308101103

Part Number760308101103

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

760308101103 - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package40
ManufacturerWurth Electronics Inc.
SeriesWE-WPCC
Part StatusActive
FunctionTransmitter
Type1 Coil, 1 Layer
Inductance6.5µH
Tolerance±10%
DC Resistance (DCR)180mOhm Max
Q @ Freq35 @ 125kHz
Current Rating (Amps)3A
Current - Saturation8A
Frequency - Self Resonant20MHz
Operating Temperature-20°C ~ 105°C
Size / Dimension1.18" L x 1.18" W x 0.07" H (30.0mm x 30.0mm x 1.9mm)

760308101103 - Related Products

More >>
760308104120 Wurth Electronics Inc., 3 Coil, 1 Layer 6.9µH, 6.4µH, 6.9µH Wireless Charging Coil Transmitter 45mOhm, WE-WPCC View
760308100110 Wurth Electronics Inc., 1 Coil, 1 Layer 24µH Wireless Charging Coil Transmitter 70mOhm, WE-WPCC View
760308102144 Wurth Electronics Inc., 1 Coil, 2 Layer 19.5µH Wireless Charging Coil Transmitter 45mOhm Max, WE-WPCC View
760308103204 Wurth Electronics Inc., 1 Coil, 1 Layer 16.7µH Wireless Charging Coil Receiver 430mOhm, WE-WPCC View
760308103307 Wurth Electronics Inc., 2 Coil, 1 Layer 7.8µH, 1.6µH Wireless Charging Coil Receiver 340mOhm Max, 90mOhm Max, WE-WPCC View
760308104113 Wurth Electronics Inc., 1 Coil, 1 Layer 12µH Wireless Charging Coil Transmitter 72mOhm Max, WE-WPCC View
760308101220 Wurth Electronics Inc., 1 Coil, 1 Layer 12.6µH Wireless Charging Coil Receiver 340mOhm Max, WE-WPCC View
760308106 Wurth Electronics Inc., 3 Coil, 1 Layer 12.5µH, 11.5µH, 12.5µH Wireless Charging Coil Transmitter 65mOhm, WE-WPCC View
760308102207 Wurth Electronics Inc., 1 Coil, 1 Layer 8µH Wireless Charging Coil Receiver 60mOhm, WE-WPCC View
760308103148 Wurth Electronics Inc., 2 Coil, 1 Layer 6.9µH, 6.4µH Wireless Charging Coil Receiver, Transmitter 52mOhm Max, WE-WPCC View
760308103305 Wurth Electronics Inc., 2 Coil, 1 Layer 8.8µH, 1.4µH Wireless Charging Coil Receiver 220mOhm Max, 100mOhm Max, WE-WPCC View
760308101141 Wurth Electronics Inc., 1 Coil, 1 Layer 10µH Wireless Charging Coil Transmitter 30mOhm Max, WE-WPCC View
