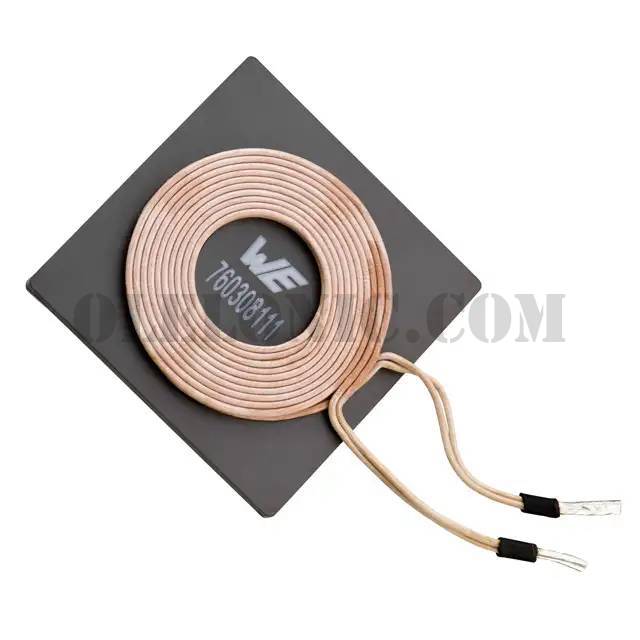

760308111


760308111

Part Number760308111

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

760308111 - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package14
ManufacturerWurth Electronics Inc.
SeriesWE-WPCC
Part StatusActive
FunctionTransmitter
Type1 Coil, 1 Layer
Inductance6.3µH
Tolerance±10%
DC Resistance (DCR)24mOhm Max
Q @ Freq80 @ 125kHz
Current Rating (Amps)13A
Current - Saturation16A
Frequency - Self Resonant20MHz
Operating Temperature-20°C ~ 105°C
Size / Dimension2.10" L x 2.10" W x 0.24" H (53.3mm x 53.3mm x 6.0mm)
