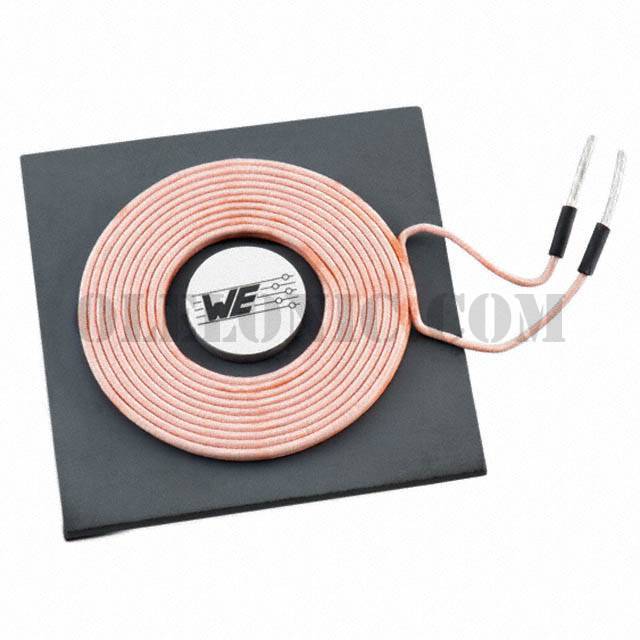

760308101


760308101

Part Number760308101

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

760308101 - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package14
ManufacturerWurth Electronics Inc.
SeriesWE-WPCC
Part StatusActive
FunctionTransmitter
Type1 Coil, 1 Layer
Inductance24µH
Tolerance±10%
DC Resistance (DCR)100mOhm Max
Q @ Freq90 @ 125kHz
Current Rating (Amps)6A
Current - Saturation10A
Frequency - Self Resonant6MHz
Operating Temperature-20°C ~ 105°C
Size / Dimension2.10" L x 2.10" W x 0.24" H (53.3mm x 53.3mm x 6.0mm)
