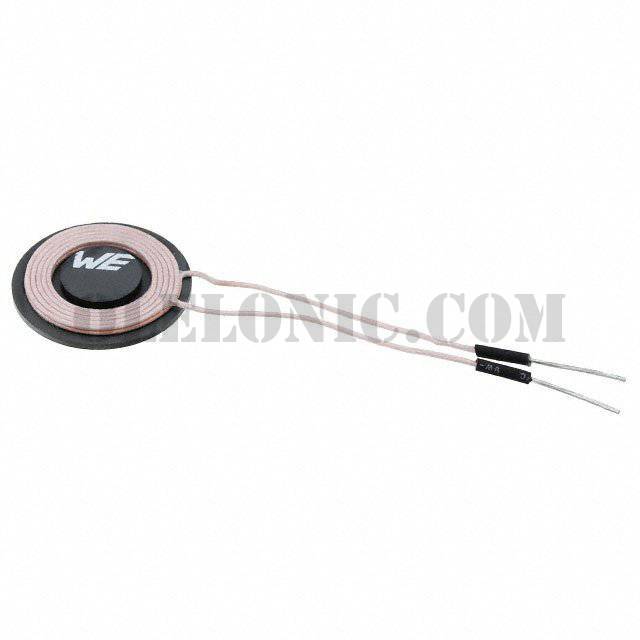

760308101105


760308101105

Part Number760308101105

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

760308101105 - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package66
ManufacturerWurth Electronics Inc.
SeriesWE-WPCC
Part StatusActive
FunctionTransmitter
Type1 Coil, 1 Layer
Inductance3.3µH
Tolerance±10%
DC Resistance (DCR)80mOhm Max
Q @ Freq30 @ 125kHz
Current Rating (Amps)3A
Current - Saturation6A
Frequency - Self Resonant20MHz
Operating Temperature-20°C ~ 105°C
Size / Dimension0.81" Dia x 0.10" H (20.5mm x 2.6mm)

760308101105 - Related Products

More >>
760308103305 Wurth Electronics Inc., 2 Coil, 1 Layer 8.8µH, 1.4µH Wireless Charging Coil Receiver 220mOhm Max, 100mOhm Max, WE-WPCC View
760308104119 Wurth Electronics Inc., 2 Coil, 1 Layer 12µH, 11.5µH Wireless Charging Coil Transmitter 56mOhm, WE-WPCC View
760308101214 Wurth Electronics Inc., 1 Coil, 1 Layer 26µH Wireless Charging Coil Receiver 520mOhm Max, WE-WPCC View
760308103147 Wurth Electronics Inc., 3 Coil, 1 Layer 8.5µH, 7.5µH, 8.5µH Wireless Charging Coil Receiver, Transmitter 56mOhm Max, WE-WPCC View
760308101104 Wurth Electronics Inc., 1 Coil, 1 Layer 6.3µH Wireless Charging Coil Transmitter 125mOhm Max, WE-WPCC View
760308102306 Wurth Electronics Inc., 2 Coil, 1 Layer 8µH, 1.4µH Wireless Charging Coil Receiver 400mOhm Max, 100mOhm Max, WE-WPCC View
760308103204 Wurth Electronics Inc., 1 Coil, 1 Layer 16.7µH Wireless Charging Coil Receiver 430mOhm, WE-WPCC View
760308101302 Wurth Electronics Inc., 1 Coil, 1 Layer 5.3µH Wireless Charging Coil Transmitter 33mOhm, WE-WPCC View
760308101 Wurth Electronics Inc., 1 Coil, 1 Layer 24µH Wireless Charging Coil Transmitter 100mOhm Max, WE-WPCC View
760308201 Wurth Electronics Inc., 1 Coil, 1 Layer 10µH Wireless Charging Coil Receiver 200mOhm Max, WE-WPCC View
760308103215 Wurth Electronics Inc., 1 Coil, 1 Layer 14.3µH Wireless Charging Coil Receiver 190mOhm Max, WE-WPCC View
760308100143 Wurth Electronics Inc., 1 Coil, 1 Layer 6µH Wireless Charging Coil Transmitter 18mOhm Max, WE-WPCC View
