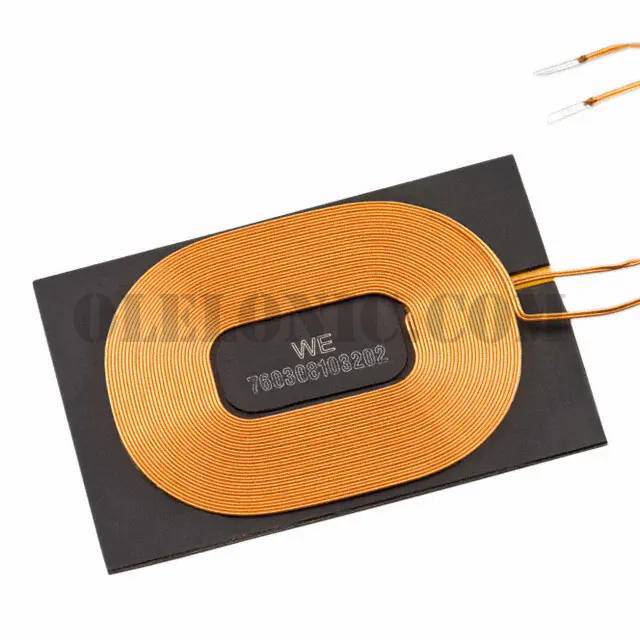

760308103202


760308103202

Part Number760308103202

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

760308103202 - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package192
ManufacturerWurth Electronics Inc.
SeriesWE-WPCC
Part StatusActive
FunctionReceiver
Type1 Coil, 1 Layer
Inductance12µH
Tolerance±10%
DC Resistance (DCR)160mOhm
Q @ Freq33 @ 125kHz
Current Rating (Amps)2.9A
Current - Saturation6A
Frequency - Self Resonant25MHz
Operating Temperature-20°C ~ 105°C
Size / Dimension1.89" L x 1.26" W x 0.04" H (48.0mm x 32mm x 1mm)
