Categories	Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet	WR383245-17F5-G Spec
Standard Package	288
Manufacturer	TDK Corporation
Series	WR
Part Status	Active
Function	Receiver
Type	1 Coil, 1 Layer
Inductance	13.9µH
DC Resistance (DCR)	310mOhm
Q @ Freq	28 @ 100kHz
Size / Dimension	1.51" L x 1.27" W x 0.03" H (38.4mm x 32.3mm x 0.9mm)

WT-525225-20K2-A1-G	TDK Corporation, 1 Coil, 2 Layer 24µH Wireless Charging Coil Transmitter 100mOhm Max, WT	View
WT505090-10F2-LP-G1	TDK Corporation, 1 Coil, 1 Layer 6.3µH Wireless Charging Coil Transmitter 60mOhm, WT	View
WR202010-18M8-SM	TDK Corporation, 1 Coil, 2 Layer 10.68µH Wireless Charging Coil Receiver 350mOhm, WR	View
WR301025-19M8-G	TDK Corporation, 1 Coil, 2 Layer 12.8µH Wireless Charging Coil Receiver 1.27Ohm Max, WR	View
WT303012-12F2-ID	TDK Corporation, 1 Coil, 2 Layer 6.3µH Wireless Charging Coil Transmitter 90mOhm, WT	View
WR202020-18M8-G	TDK Corporation, 1 Coil, 1 Layer 9.9µH Wireless Charging Coil Receiver 520mOhm, WR	View
WT252512-8F2-SM	TDK Corporation, 1 Coil, 1 Layer 2.76µH Wireless Charging Coil Transmitter 70mOhm, WT	View
WR524830-16F3-NF-G	TDK Corporation, 1 Coil, 1 Layer 19.5µH Wireless Charging Coil Receiver 800mOhm, WR	View
WR222230-26M8-G	TDK Corporation, 1 Coil, 2 Layer 27µH Wireless Charging Coil Receiver 1.1Ohm Max, WR	View
WR444030-16F3-G	TDK Corporation, 1 Coil, 1 Layer 19µH Wireless Charging Coil Receiver 700mOhm, WR	View
WT-505060-20K2-A10-G	TDK Corporation, 1 Coil, 2 Layer 24µH Wireless Charging Coil Transmitter 100mOhm Max, WT	View
WT151512-22F2-ID	TDK Corporation, 1 Coil, 2 Layer 6.8µH Wireless Charging Coil Transmitter 170mOhm, WT	View

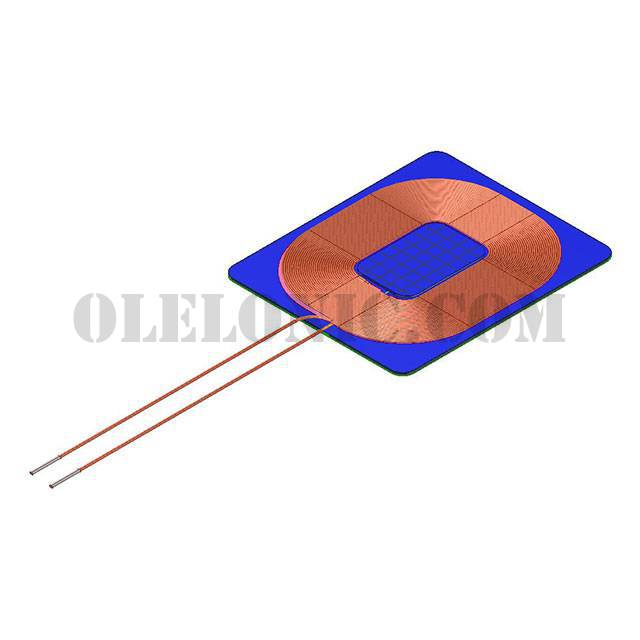

WR383245-17F5-G
